What Is MARSHINE Transverse Bundle Stripper?

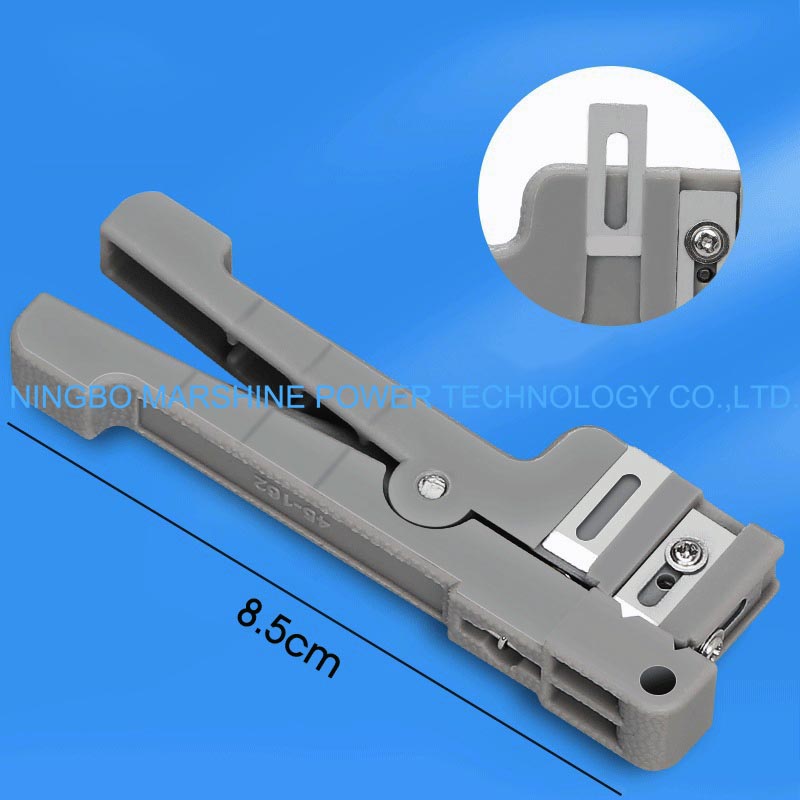

Accurate cable preparation is essential in fiber optic installation and maintenance works because improper stripping may damage fibers, affect signal transmission, and increase rework costs. The MARSHINE Fiber Optic Cable Transverse bundle stripper From 3.2-5.6MM Fibers is specifically designed to remove fiber optic cable jackets transversely with precision and safety.
So How To Use MARSHINE Fiber Optic Transverse Bundle Stripping Tool?
Having Measured and Marked
Determine how much of the outer sheath to strip across.
Make a clear mark on the cable to show where to cut.

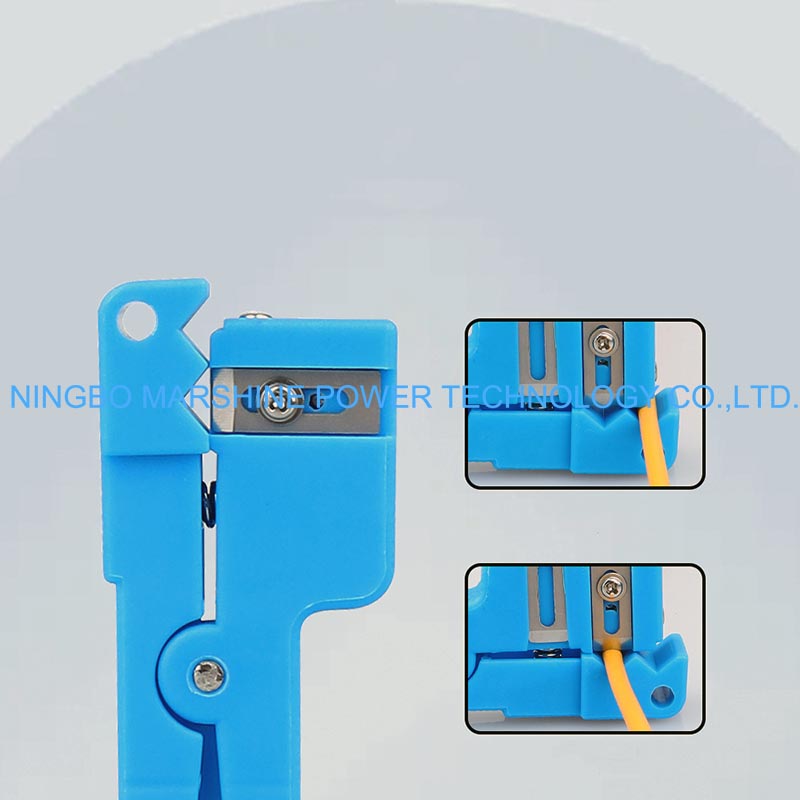

Change how deep the blade goes
Adjust the blade depth carefully:
Too shallow means incomplete cut;
Too deep risk to buffer tubes or fibers;
So please perform a test cut if you are uncertain about the thickness of the sheath.

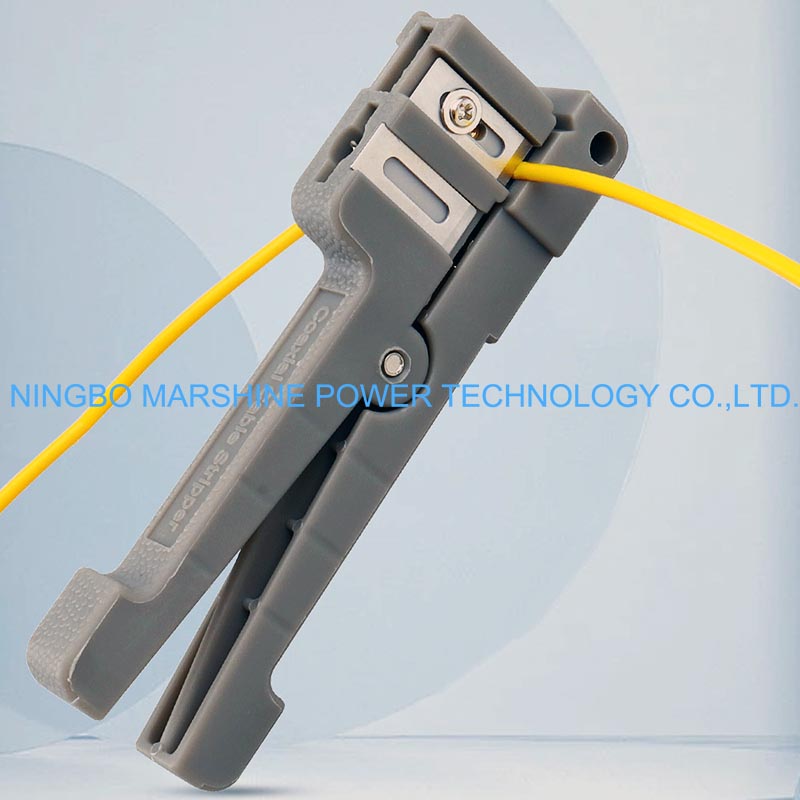

Place the Cable in the Stripper
Insert the plug into the groove of the tool:
Make sure the cable is tightly inserted;
Line up the blade with your marked cutting line;
The cable will securely shallow in well in the diameter range recommended.
Rotate the Tool Around the Cable
Apply light pressure as you spin the MARSHINE Fiber Optic Cable Transverse bundle stripper From 3.2-5.6MM Fibers around the cable:
Keep the rotation smooth and controlled;
Do one full rotation;
Don’t apply too much pressure;
It will be a clean transverse (or ring) cut.
Pull Off the Outer Sheath
After making the circular cut:
Bend the cable slightly at the cutting point;
Slide or peel off the outer jacket gently;
Check internal fiber tubes and fibers;
If you’ve got it set correctly, the sheath will come off in one piece.
