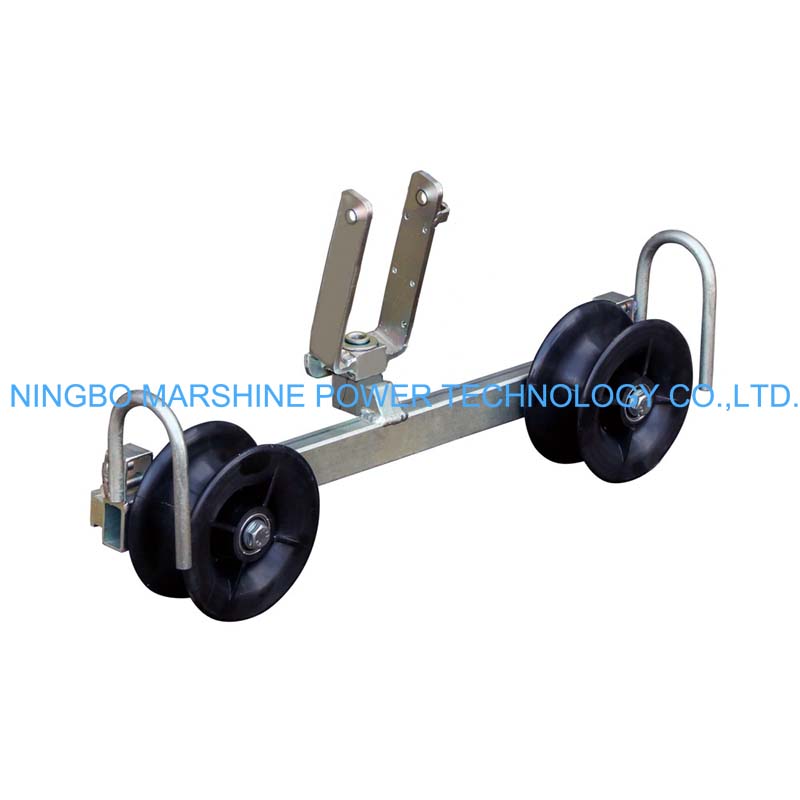

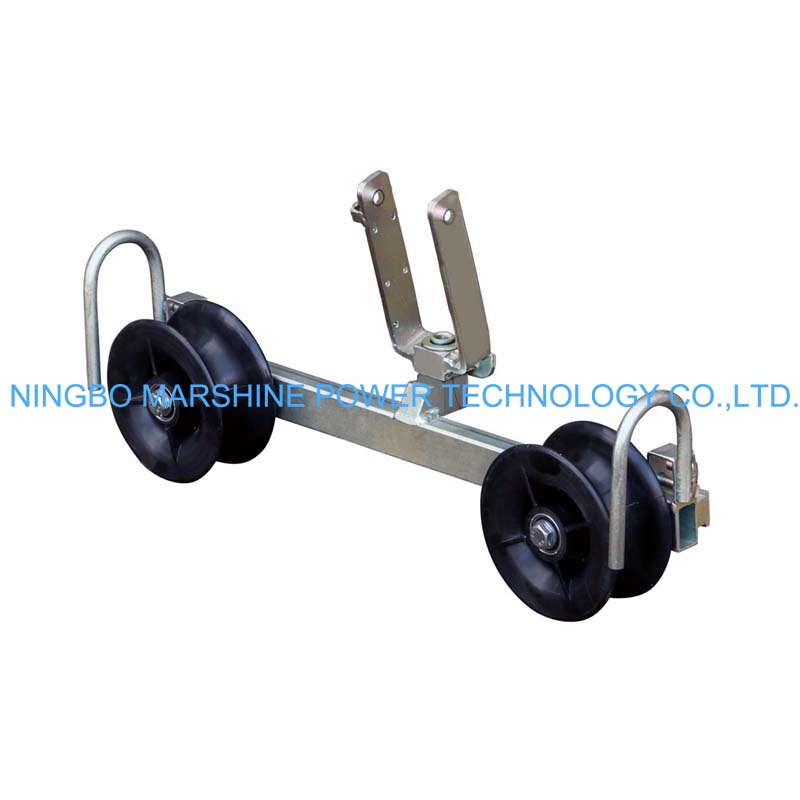

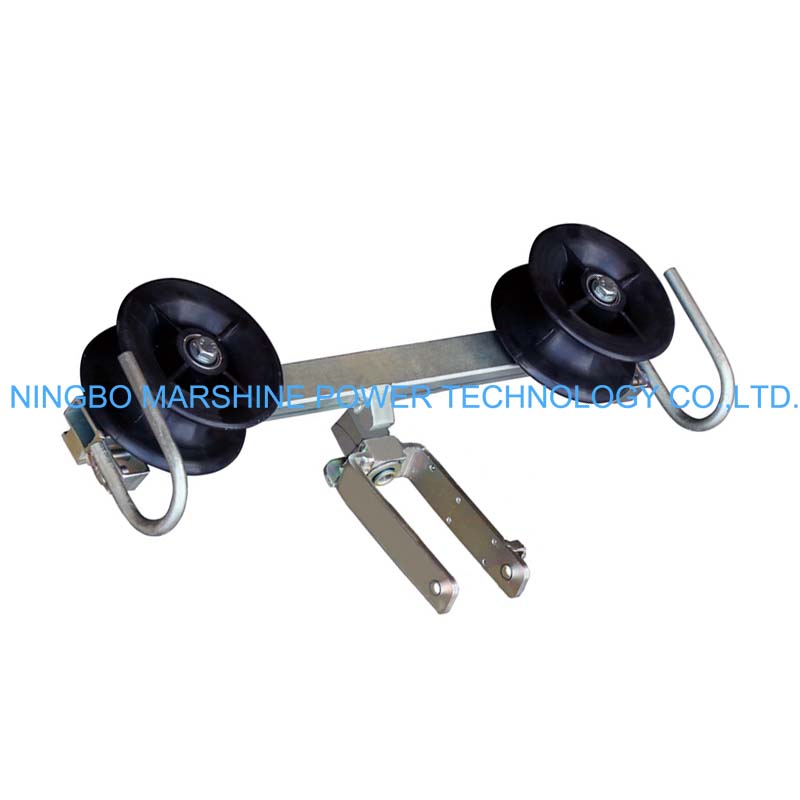

What Is MARSHINE LV Cable Stringing Pulley?
The MARSHINE LV Cable Tensioning Frame Stinging Pulley Block is a dependable and reliable wire pulling equipment for LV cable installation and tensioning working. It is important for guiding cables, relying on tension and smooth stringing. The heavy duty frame and high quality pulley system work together to minimize friction and protect your cable, resulting in maximum productivity in power line and utility work.
Key Features
Strong Tensioning Frame
Built with durable steel construction to handle cable tension during installation.
Smooth Pulley System
Designed to minimize friction and allow easy cable movement.
Stable Base Structure
Provides firm support during tensioning and stringing operations.
Versatile Application
Suitable for LV power cables, distribution lines, and telecom cables.
Compact and Portable
Easy to transport and install on-site.
So How To Use MARSHINE LV Cable Stringing Pulley Correctly?
Preparation
Preparation is the key to safe and effective operation:
Check The Equipment
Examine the pulley block, the frame and the fasteners for wear, cracks or looseness.
Achieve Smooth Rotation
Confirm the pulley can spin smoothly without blockage.
Confirm Cable Compatibility
Verify that the diameter of the cable fits the runner or the groove.
Set Up The Cable Route
Remove obstructions and line it up.
Set Up The Pulley
Place The Pulley
Place your MARSHINE LV Cable Tensioning Frame Stinging Pulley Block on solid, level floor.
Make sure it is oriented in the same direction as the cable run.
Fasten The Frame
If you need to, anchor the frame so it doesn't move while you work.
Make sure all nuts and bolts are tight.
Attach The Pulley Block
Securely fasten the pulley block to the frame.
Make sure the pulley is aligned with the cable line.
Running and Tensioning the Cable
Once your installation is finished:
Insert the cable into the pulley and place the wire rope into the pulley groove and make sure that it is seated.
Begin The Pulling Start
Winch or pull the cable through the pulley block.
Use a Controlled Tension Application
Increasing tension progressively using the rigging to keep the correct cable alignment.
Observe Cable Movement
Make sure cable moves freely without slipping or sticking.
Adjust Tension If Necessary
Keep the pull on evenly to prevent the wire from being pulled too hard.
