What Is MARSHINE Anti-Drop Cable Tray Cable Mounting Rollers?
Our MARSHINE Cable Tray Cable Laying Pulley Anti-Drop Cable Tray Mounting Rollers can be installed with standard cable trays running through the rollers and are the industry’s best rollers providing faster, safer, and easier cable pulling inside tray systems. These are rollers that are designed to ease directly on cable trays to help guide cables along the path and they also prevent cables from slipping or falling outside the tray. Featuring anti-drop design and low friction rollers, they find their mass application in industrial plants, data centers constructions and the power distribution undertaking projects.
So How To Use It Properly?
Preparation
Preparation is half the work:
Examine The Rollers
Look for any damage or debris and if the rollers are loose. Make sure the rollers spin freely.
Check Compatibility
Make sure that the roller is suitable for the jog width and the size of cable.
Inspect The Cable Tray
Make sure the tray is stable, clean and there are no sharp angles.
Plan The Cable Route
Specify your roller location intervals along the tray.
Installing the Rollers
Place the Roller on the Tray
The roller can be placed either at the beginning of the cable tray or at any point along the run.
Make sure it rests firmly on the tray rail, or the rungs.

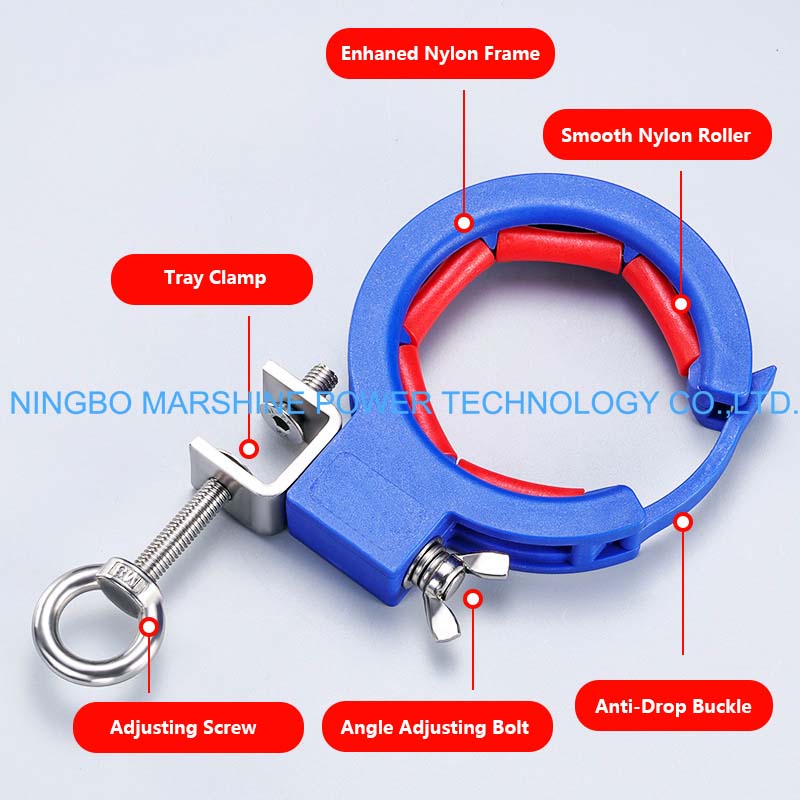

Secure Roller
If the roller of your MARSHINE Cable Tray Cable Laying Pulley Anti-Drop Cable Tray Mounting Rollers has clamps or other locking mechanisms, close them tightly to immobilize the roller.
Verify that the anti-drop is engaged.
Line Up Several Rollers
Add more rollers at equal spaces along the tray.
Check that the rollers are all lined up with the cable route so the rollers run smoothly.

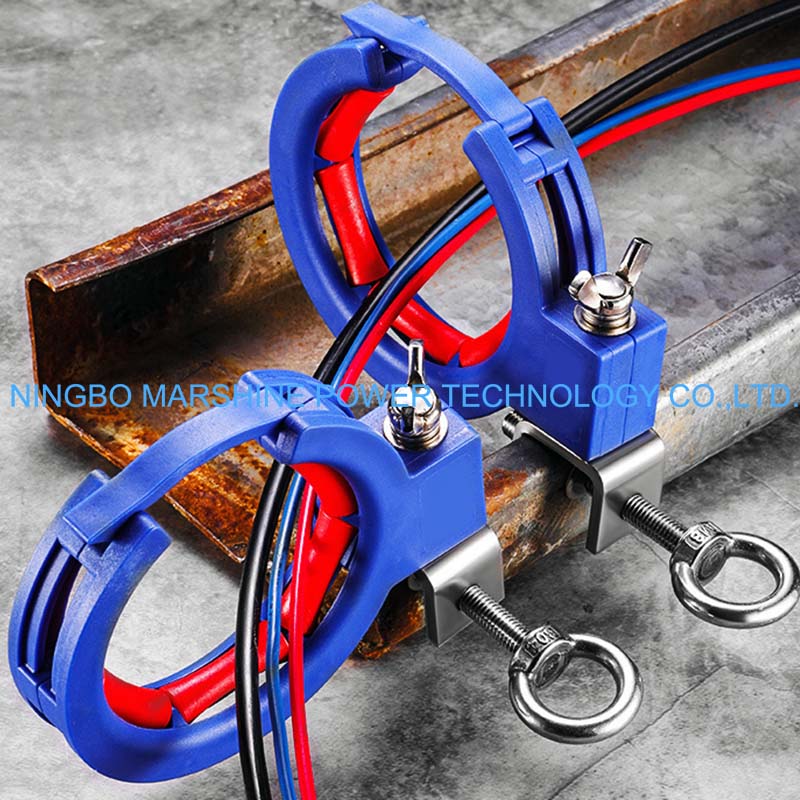

Laying the Cable
Once the rollers are installed:
Position the cable
Bring the cable drum near to the tray and line up with the path of the rollers.
Place the cable onto the rollers
Enter the cable into the grooves of the rollers, taking good care that it is well seated.
Start the pulling process
Manually or by means of winch pull the cable through the tray.
Maintain steady movement
Maintain an even pulling force to prevent snarls or sudden tension.
Monitor cable alignment
Make sure the cable remains within the rollers and does not fall off.
Adjust rollers if necessary
Move back into place any roller that gets knocked out of alignment while installing.
