What Is MARSHINE MARCD-20 Cable Drum Trailer?

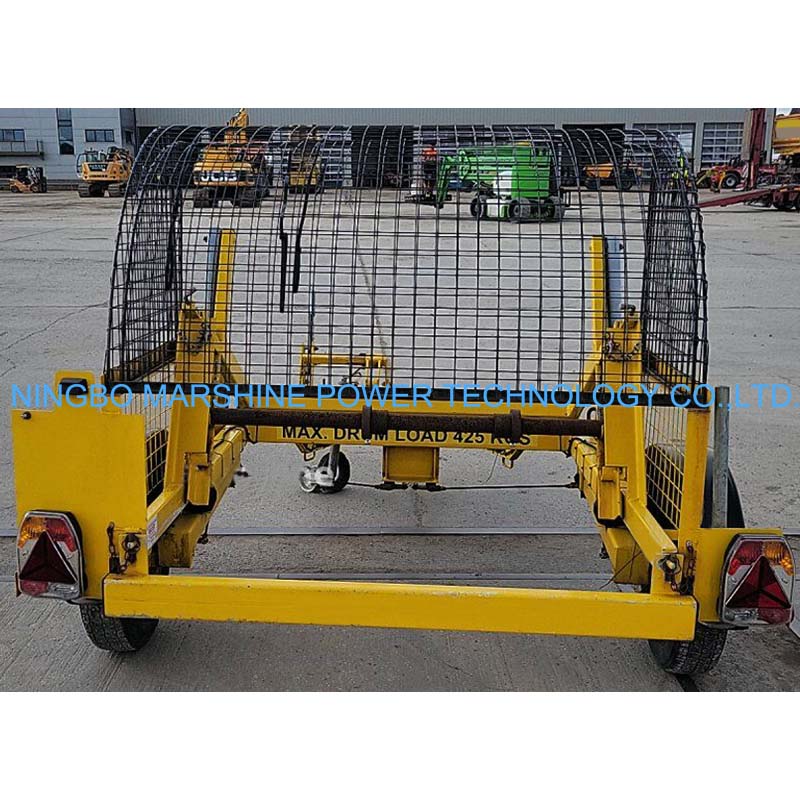

This MARSHINE MARCD-20 Single Axle Netting Style Cable Drum Trailer is an efficient cable drum transporting solution for loading, unloading, carrying, lifting, and paying out of cable drums in the field as well as in the workshop for wire, wire rope, and cable. Its unique netting frame style allow for greater visibility, less weight and more stability, making it an ideal solution for medium size cables in power distribution as well as in telecoms applications.
Features
Single Axle Structure: Ensures easy maneuverability and stable towing.
Netting-Style Frame: Lightweight yet strong, offering good visibility and reduced wind resistance.
Adjustable Drum Support System: Accommodates different drum sizes and widths.
Hydraulic Lifting Mechanism: Simplifies loading and unloading of cable drums.
Integrated Braking System: Allows controlled cable payout during installation.
Towable Design: Compatible with standard vehicles for convenient transport.
So How To Use It Properly?
Preparation
Before using the trailer, perform the following inspections:
Trailer Frame Check
Make sure that there are no cracks, distortions, or loose parts.
Tires And Axle Check
Check the tire pressure and the condition of the axle.
Check Lifting System
Make sure hydraulic components of your MARSHINE MARCD-20 Single Axle Netting Style Cable Drum Trailer move smoothly.
Test Brake
Make sure the drum brake is working.
Check Compatibility
Check cable drum dimensions and weight do not exceed rated capacity.
Set Up The Site
Select a flat, stable site for loading and working.
Load The Drum
Position the trailer
Place the trailer on a flat surface and block the wheels.
Make sure there is enough space around the trailer for the loading work to be done safely.
Lift the Drum
Raise the support arms with the built-in lifting device.
Make the cable drum right to the trailer shaft or spindle.
Mount the Drum
Pass the shaft through the centre hole of the drum.
Carefully lower the drum onto the brackets.
Fasten the drum with locking pins or clamps to hold it in place.
Test Rotation
Spin the drum by hand, you should be able to tell if the drum is running freely or binding up.
Transportation

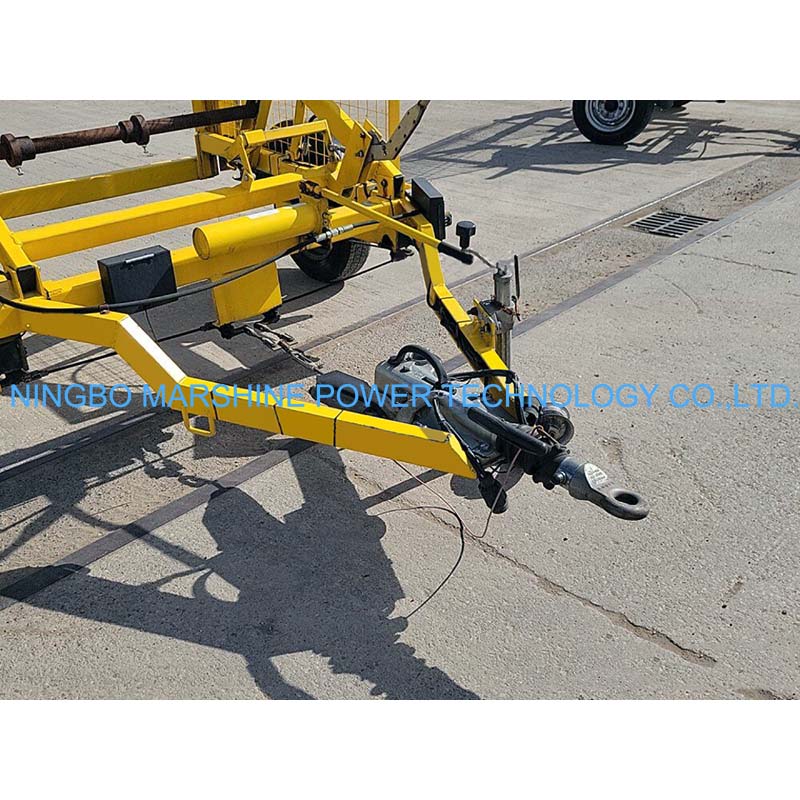

Connect To Towing Vehicle
Securely attach your MARSHINE MARCD-20 Single Axle Netting Style Cable Drum Trailer’s hitch.
Check Safety Connections
Ensure chains and lighting systems are connected.
Drive Carefully
Maintain a steady speed and avoid rough terrain where possible.
Avoid Sudden Stops
Prevent load shifting or instability.
Cable Pay-Out Operation
After arrival at the site:
Secure The Trailer
Park on a flat surface, apply the brakes and use wheel chocks or stabilizers.
Line Up With Cable Route
Place the trailer so that the cable points toward the line of installation.
Modify The Braking System
Apply the drum brake to the rate of rotation.
Start Cable Pulling
Employ a winch or by other means from the drum pull the cable.
Keep a Constant Tension
Do not jerk the cable while paying it out—operate it regularly and smoothly.
Watch The Drum
Watch for a bobbing or tangling and stop if this occurs.
