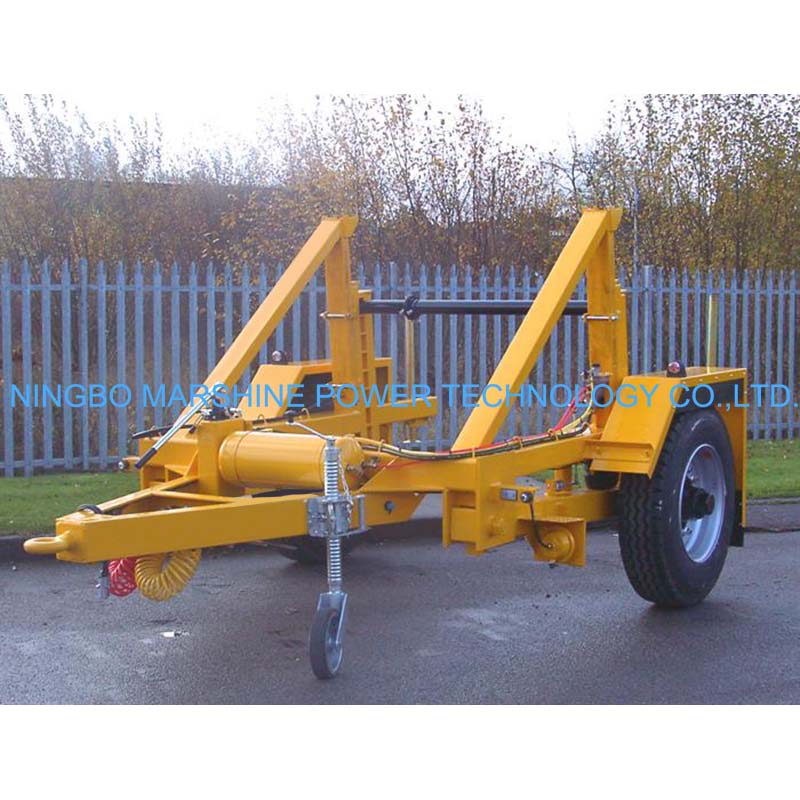

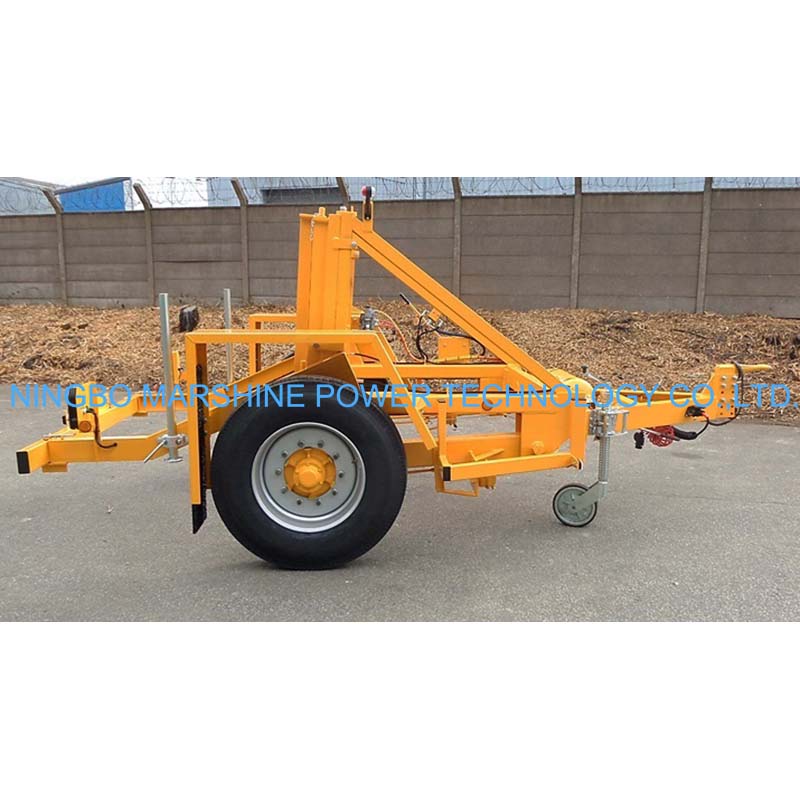

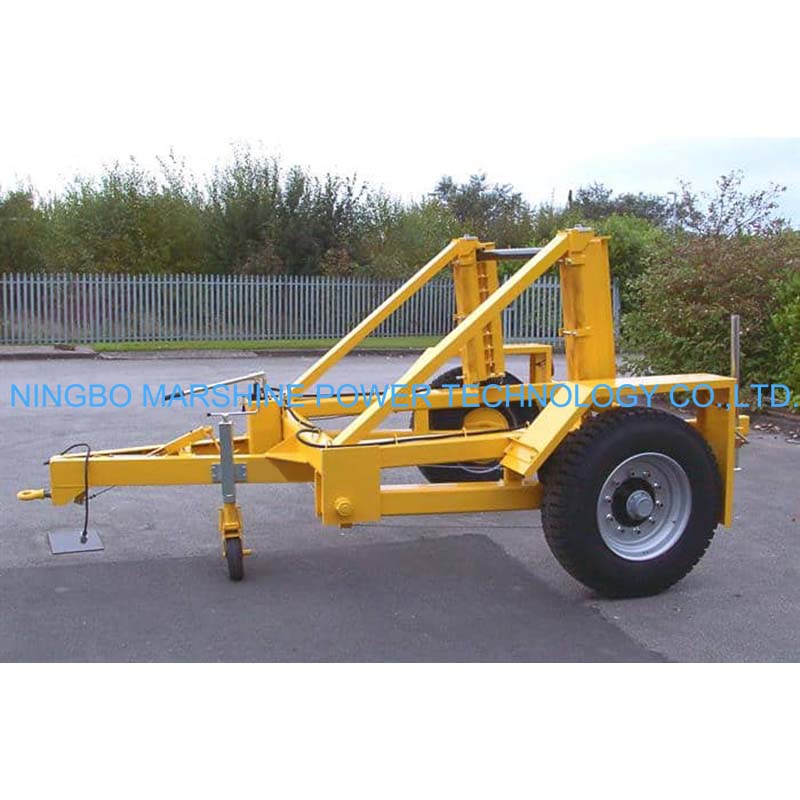

What Is MARSHINE MARCD-130 Hydraulic Cable Drum Trailer?
The MARSHINE MARCD-130 Hydraulic Support Single Axle Cable Drum Trailer is a heavy-duty cable management product that enables you to move lift, and dispense cable drums securely and efficiently. With an efficient hydraulic support and strong single axle design, this cable reel trailer is perfect for challenging power transmission, utility and telecom jobs. It greatly reduces manual work, allowing safer operations and better utilization of the cable for deployment.
So How Can I Use It Properly?
Before Use
Safe operation requires adequate readiness.
Inspect The Trailer: Inspect the frame, axle, tires, hitch and support arms for any signs of damage or wear.
Check The Hydraulics: Make sure the hydraulic cylinders, hoses and pumps are working properly and there are no leaks.
Test The Brakes: Make sure the drum brake works well.
Check The Load Rating: Make sure the weight of the cable drum is within the rated load of the trailer.
Ready The Worksite: The ground should be level and firm for loading and for paying out cable.
Loading the Cable Drum
Position the Trailer
Park the MARSHINE MARCD-130 Hydraulic Support Single Axle Cable Drum Trailer on firm, level ground.
Secure the trailer using wheel chocks to prevent movement.
Raise the Hydraulic Supports
Activate the hydraulic system using the control mechanism.
Lift the support arms to the required loading height.
Position the Cable Drum
Move the cable drum into the center position between the support arms.
Align the drum shaft with the hydraulic support brackets.
Insert the Drum Shaft
Pass the steel shaft through the center hole of the cable drum.
Secure the shaft on both sides of the trailer supports.
Lift and Secure the Drum
Slowly raise the drum using the hydraulic system.
Ensure the drum remains balanced and rotates freely.
Lock the shaft and supports securely with retaining pins or clamps.
Transporting the Trailer
Hook up to the tow vehicle with the trailer hitch.
Connect safety chains and electrical connectors, if applicable.
Inspect tire wear and lighting system prior to transport.
Be cautious when operating vehicle, particularly whilst driving on rough terrain, or on roadwork.
Try to avoid slamming on your brakes and turning too sharply as it is important to keep the trailer balanced.
Cable Pay-Out Operation
Once the trailer is situated at the jobsite:
Stabilize the trailer Park on a level surface and apply the wheel chocks.
Line Up With The Cable Path
Move the trailer so the cable runs straight down the route of installation.
Modify The Braking Mechanism
Apply the drum brake to slow down pace of cable payout.
Start Pulling The Cable
Pull the cable out of the drum with a winch or manually.
Keep The Tension Under Control
Make sure you are unwinding the cable smoothly and evenly without jolts.
Observe Drum Rotation
Look out for snarl, uneven payout and over speed rotation.
