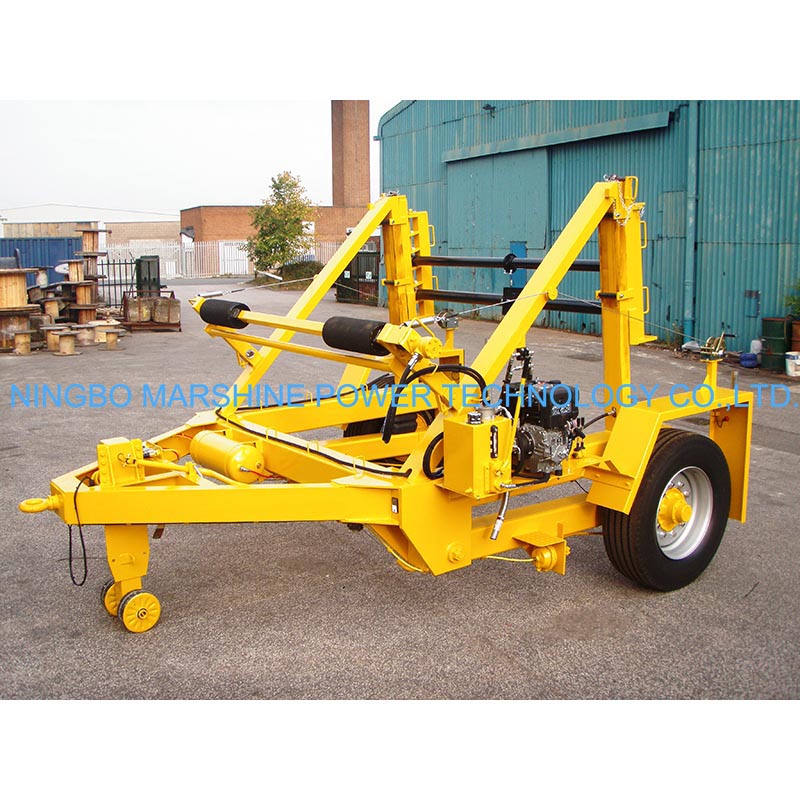

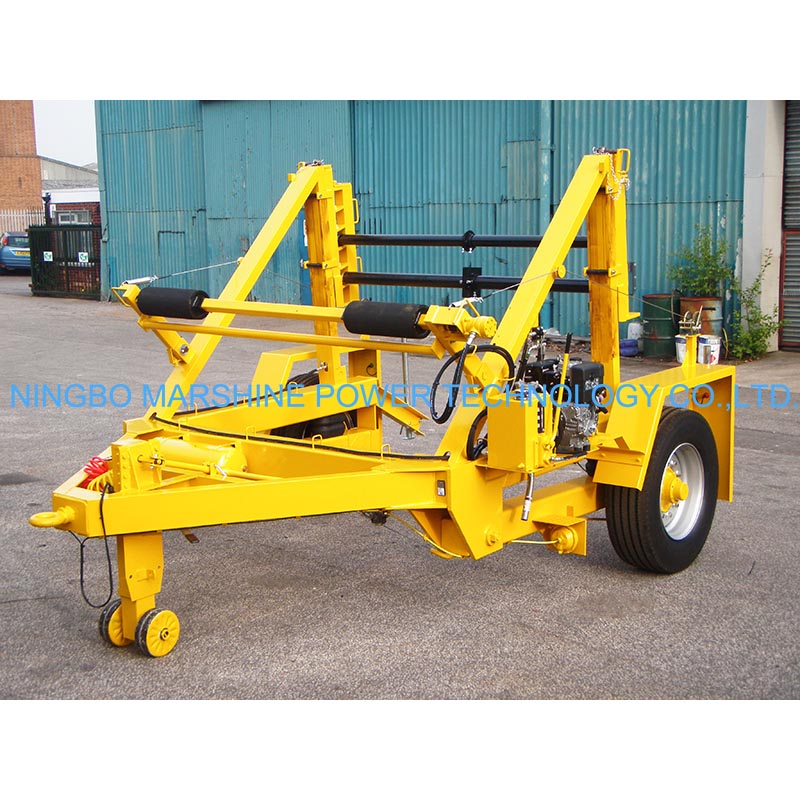

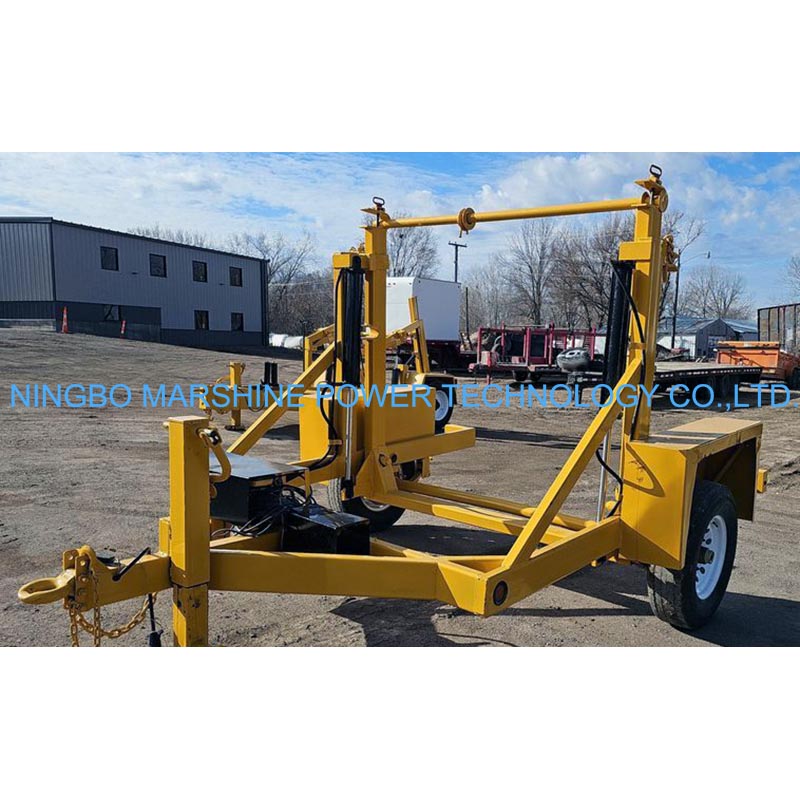

What Is MARSHINE MARCD-210 Hydraulic Cable Drum Trailer?
The MARSHINE MARCD-210 Single Axle 2 Line Air Hydraulic Cable Drum Trailer is a high-capacity cable handling machine designed for transporting, lifting, and dispensing heavy cable drums efficiently and safely. Been equipped with an advanced 2-line air hydraulic lifting system, this trailer combines powerful lifting performance with smooth operational control, making it ideal for the large-scale power transmission, underground cable installation, and telecommunications projects.
So How To Use It Correctly?
Preparation Before Use
Before using the trailer, perform the following inspections and preparations:
Make an inspection of the trailer frame: Is it cracked, loose bolt or damaged?
Test the air hydraulic system: Test the hoses, cylinders, valves and air pressure system for leaks and proper operation.
Test the braking system: Make sure the drum brake mechanism functions correctly.
Check tires and axle: Tire pressure and axle should be stable and correct.
Ensure capacity: Make sure the weight and the size of the cable drum is within the rated capacity of the trailer.
Make site ready: Ground used for loading and cable payout should be level and firm.
Loading the Cable Drum
Position the Trailer
Park your MARSHINE MARCD-210 Single Axle 2 Line Air Hydraulic Cable Drum Trailer on firm, level ground.
Engage wheel chocks to prevent accidental movement.
Activate the Air Hydraulic System
Connect the air supply if required and activate the hydraulic controls.
Raise the lifting support arms to the required loading position.
Position the Cable Drum
Carefully move the cable drum between the lifting arms.
Ensure the drum is centered and balanced.
Insert the Drum Shaft
Pass the steel shaft through the center hole of the cable drum.
Secure both ends of the shaft onto the trailer support brackets.
Lift and Secure the Drum
Slowly operate the air hydraulic system to raise the drum.
Ensure stable and synchronized lifting throughout the process.
Lock the drum securely using retaining pins or support brackets.
Transporting the Trailer
Connect the trailer securely to the towing vehicle.
Attach safety chains and lighting connectors if equipped.
Inspect the hitch, tires, and suspension system before transport.
Drive carefully, especially on rough or uneven terrain.
Avoid sudden braking and sharp turns to maintain trailer stability.
Cable Pay-Out Operation
Once you’re at the mounting location:
Secure The Trailer
Stop on solid level ground and put on wheel chocks or stabilizers.
Match The Cable Run
Position the trailer so the cable enters the route of installation.
Modify The Braking System
Control the speed of rotating drum with a suitable amount of braking.
Start Cable Pulling
Apply a winch or cable pulling machine to pull the cable off the drum.
Use a winch or apply the machine to pull the cable off the drum.
Keep Up The Tension
Make unspooling of the cable during the operation nice and even and controlled.
Keep An Eye On The Rotation Of The Drum
Be alert for tangled cable, uneven payout or excessive drum speed.
