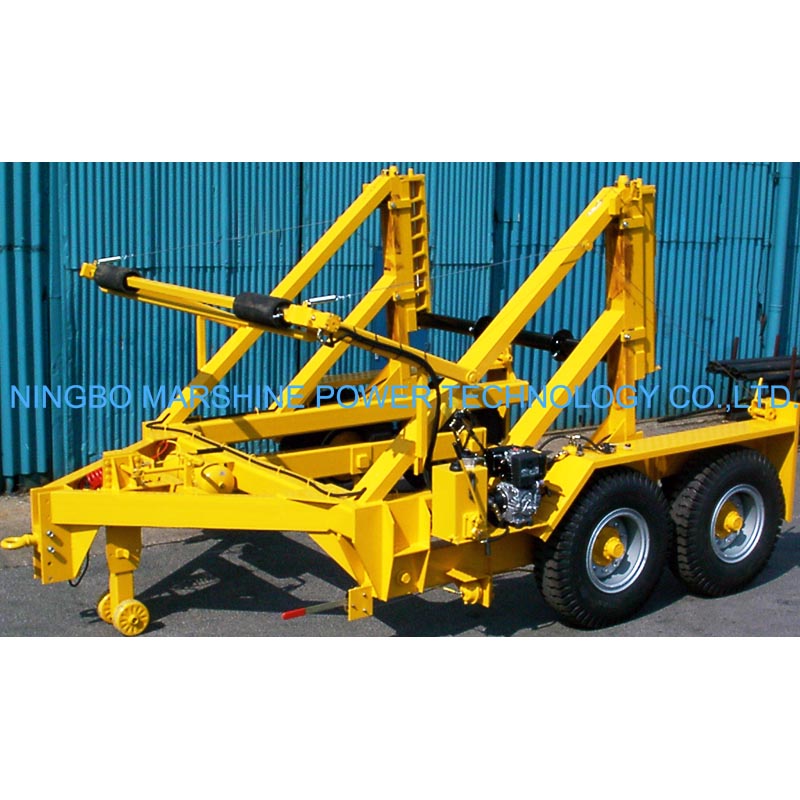

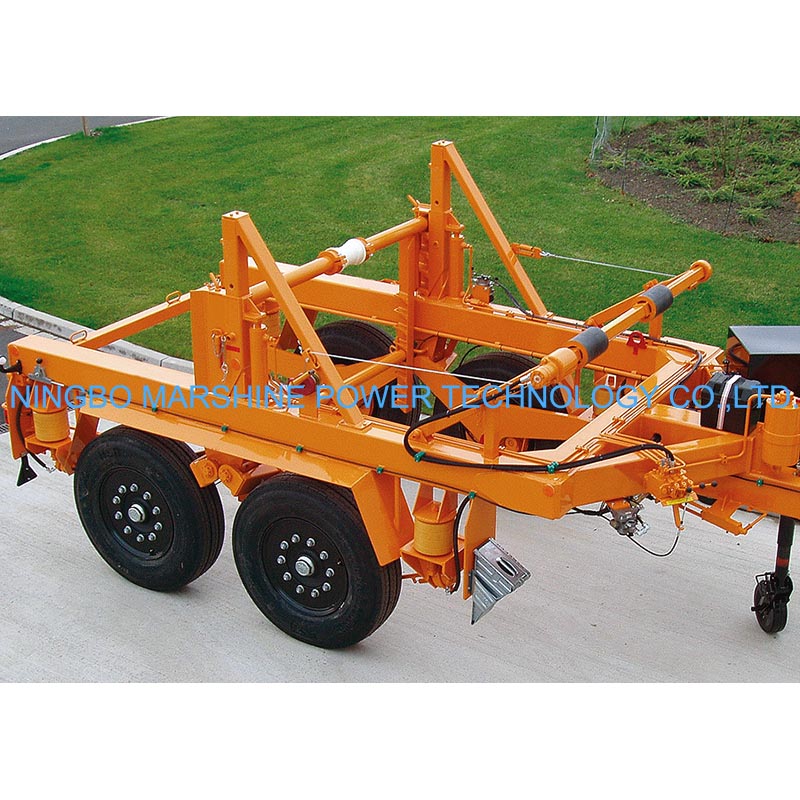

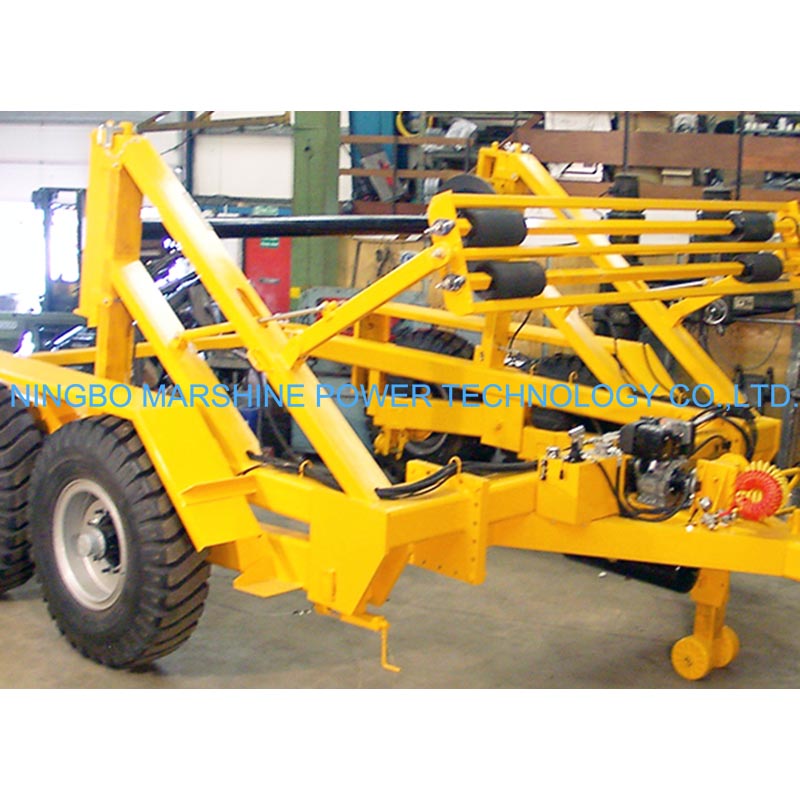

What Is MARSHINE MARCD-480 Cable Drum Trailer?
Standard cable drum transporting vehicle MARSHINE MARCD-480 Double Axle Hydraulic Cable Drum Trailer is a large capacity cable handling machine for power transmission and utilities projects with which can be used for carrying, lifting and paying out very large cable drums. Adopting sturdy double axle frame and modern hydraulic double cylinders lift system, the trailer is with great load stability and high intensity lifting performance and excellent cable output control. It is used extensively for underground cable laying works, power grid building tasks, telecom and national large projects.
So How To Use MARSHINE MARCD-480 Cable Drum Trailer Properly?
Preparation Before Use
Before operating the trailer, complete the following inspections and preparations:
Inspect the trailer frame
Check for structural damage, loose bolts, or signs of wear.
Examine the hydraulic system
Ensure hydraulic cylinders, hoses, valves, and pumps are operating properly without leaks.
Inspect the double axle system
Check tires, wheel bearings, suspension, and axle alignment.
Verify braking functions
Confirm the drum brake and trailer braking systems work smoothly.
Check drum compatibility
Ensure the cable drum size and weight are within the MARSHINE MARCD-480 Double Axle Hydraulic Cable Drum Trailer’s rated capacity.
Prepare the worksite
Use firm and level ground for safe loading and operation.
Loading the Cable Drum
Position the Trailer
The trailer should be parked on firm, level ground.
Use wedges between both wheels and parking brakes on the wheels closest to the truck.
Turn On the Hydraulic Jack-up System
Turn on the hydraulic pump or the hydraulic power unit.
Lift the support arms to the desired loading height.
Align the Cable Drum
Carefully slide the cable drum over between the arms of the two hydraulic supports.
Make sure drum is centered and balanced.
Insert the Drum Shaft
Slide the heavy-duty steel shaft through the center hole of the cable drum.
Attach both ends of the shaft to the trailer support brackets.
Lift and Lock the Drum
Operate the hydraulics slowly to raise the drum.
Make sure that the raising is smooth and steady all the way.
Drum must be securely locked on your MARSHINE MARCD-480 Double Axle Hydraulic Cable Drum Trailer using retaining pins and support locks.
Transporting the Trailer
Connect the trailer securely to the towing vehicle using the hitch system.
Attach safety chains and electrical connectors for lighting and braking systems if equipped.
Inspect tire pressure and suspension stability before transport.
Drive carefully, especially on rough roads or construction sites.
Avoid sudden braking and sharp turns to maintain load balance and safety.
Cable Pay-Out Operation
After arriving at the installation site:
Stabilize the trailer
Park on level ground and engage wheel chocks or stabilizers.
Align with the cable route
Position the trailer so the cable feeds directly toward the pulling direction.
Adjust the drum braking system
Set appropriate brake resistance to control cable payout speed.
Begin cable pulling
Use a cable pulling machine or winch to pull the cable from the drum.
Maintain steady tension
Ensure smooth and controlled cable unwinding during installation.
Monitor drum rotation
Watch for uneven payout, cable tangling, or excessive drum speed.
