What Is MARSHINE MARCD-500 Cable Drum Trailer?

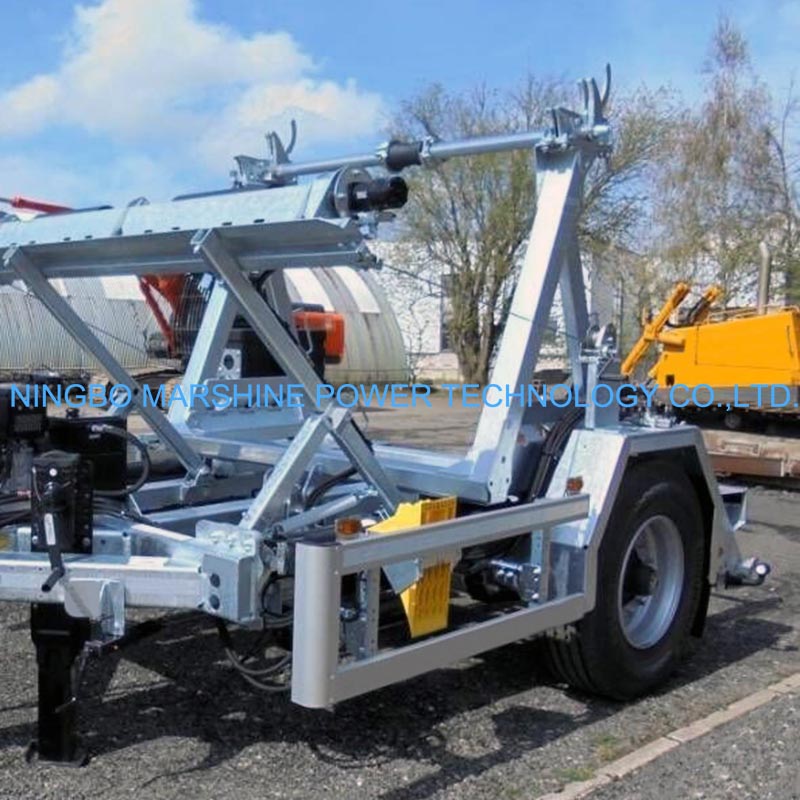

The MARSHINE MARCD-500 Hydraulic Operated Twin Axle Cable Drum Trailer is a hydraulic operated twin axle cable drum trailer that is a rugged cable handling system tailored for moving, raising, and unrolling large cable drums on challenging utility and infrastructure work sites. Adopting a high-quality hydraulic system and a stable twin axle structure, it can achieve good load distribution, strong towing stability, and high-speed cable release in power transmission applications, telecommunication, and underground cable laying.
So How To Use MARSHINE MARCD-500 Cable Drum Trailer?
Preparation Before Use
Before operating the trailer, complete the following inspections and preparations:
Inspect the trailer frame: Check for cracks, loose bolts, or structural wear.
Examine the hydraulic system: Ensure hydraulic cylinders, hoses, valves, and pumps are functioning correctly without leaks.

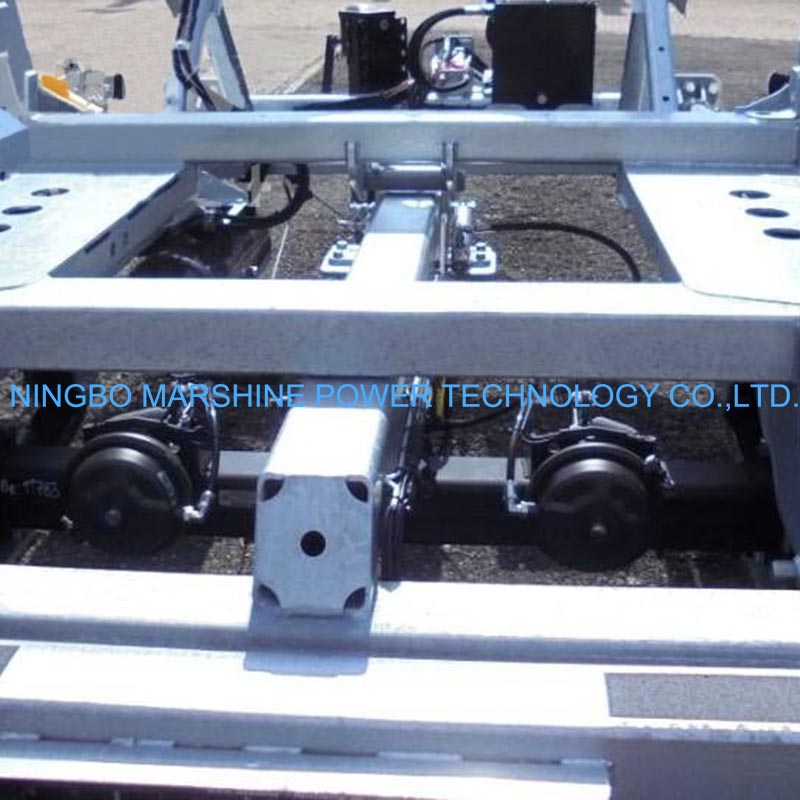

Inspect the twin axle assembly: Check tires, wheel bearings, suspension, and axle alignment.
Verify braking systems: Ensure both trailer brakes and drum brakes operate properly.
Check drum compatibility: Confirm that the cable drum size and weight are within the rated capacity.
Prepare the worksite: Use stable and level ground for loading and operation.
Loading the Cable Drum
Position the Trailer
Park the trailer on firm and level ground.
Engage wheel chocks and parking brakes to prevent movement.

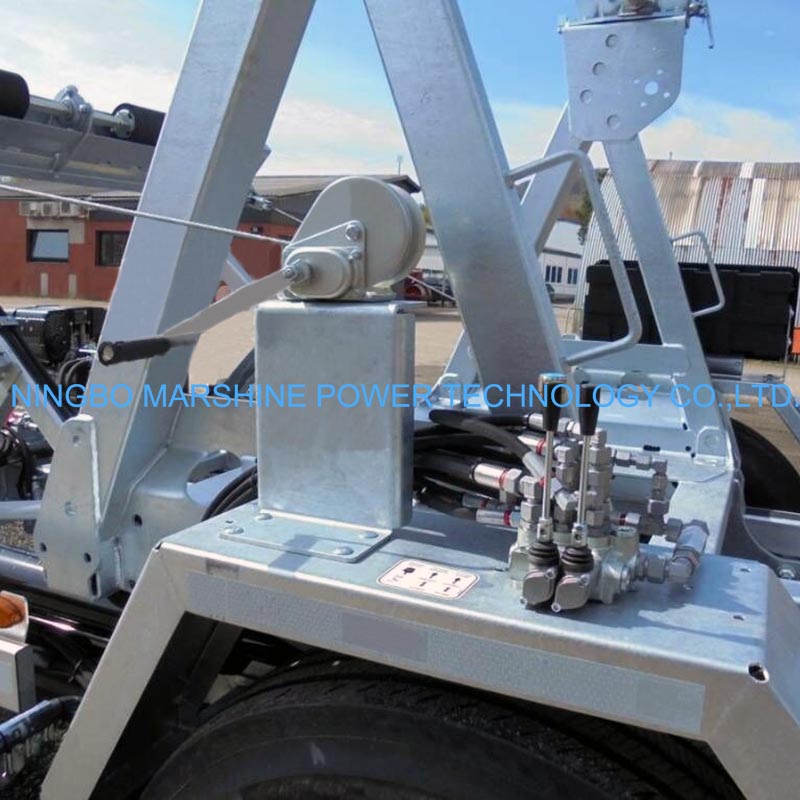

Activate the Hydraulic System
Start the hydraulic pump or engage the control mechanism.
Raise the support arms to the required loading height.
Position the Cable Drum
Carefully move the cable drum between the support arms.
Ensure the drum is centered and balanced before lifting.
Insert the Drum Shaft
Pass the heavy-duty steel shaft through the center hole of the cable drum.
Secure both ends of the shaft onto your MARSHINE MARCD-500 Hydraulic Operated Twin Axle Cable Drum Trailer support brackets.
Lift and Secure the Drum
Slowly operate the hydraulic controls to raise the drum.
Ensure smooth and stable lifting during the process.
Lock the drum securely using retaining pins and support locks.
Transporting the Trailer
Securely connect the trailer to the towing vehicle using the hitch system.
Attach safety chains and electrical connectors for trailer lighting and braking systems if equipped.
Inspect tire pressure and suspension condition before transport.
Drive carefully, especially on uneven roads or construction sites.
Avoid sudden braking and sharp turns to maintain load stability.
Cable Pay-Out Operation
Once the trailer is positioned at the installation site:
Stabilize the trailer
Park on level ground and engage wheel chocks or stabilizers.
Align with the cable route
Position the trailer so the cable feeds directly toward the pulling direction.
Adjust the drum braking system
Set the brake resistance to control cable payout speed.
Begin cable pulling
Use a cable pulling machine or winch to draw the cable from the drum.
Maintain steady tension
Ensure smooth and controlled cable unwinding throughout the installation process.
Monitor drum rotation
Watch for cable tangling, uneven payout, or excessive drum speed.
