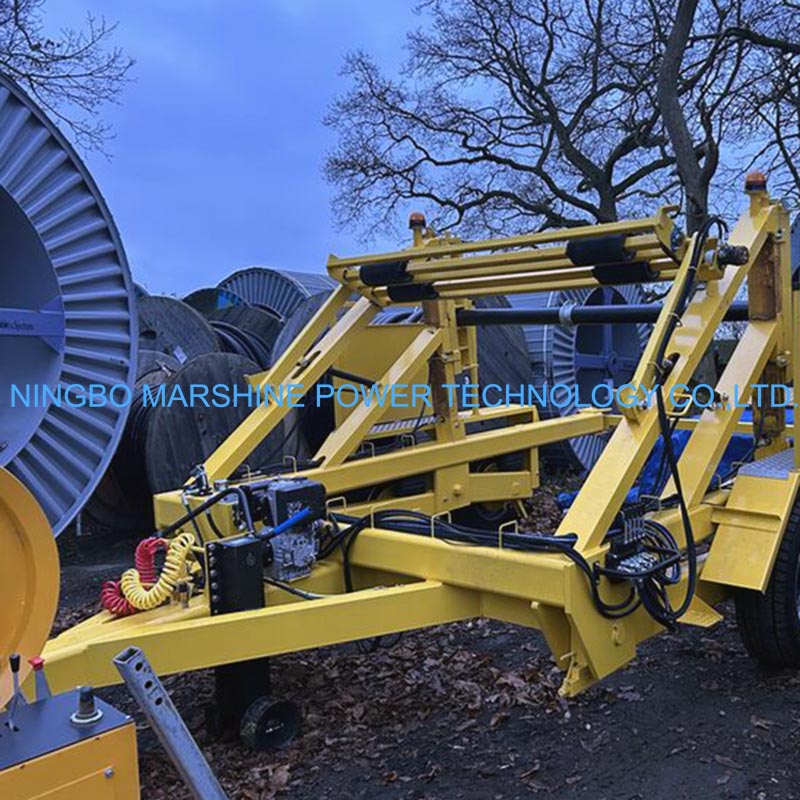

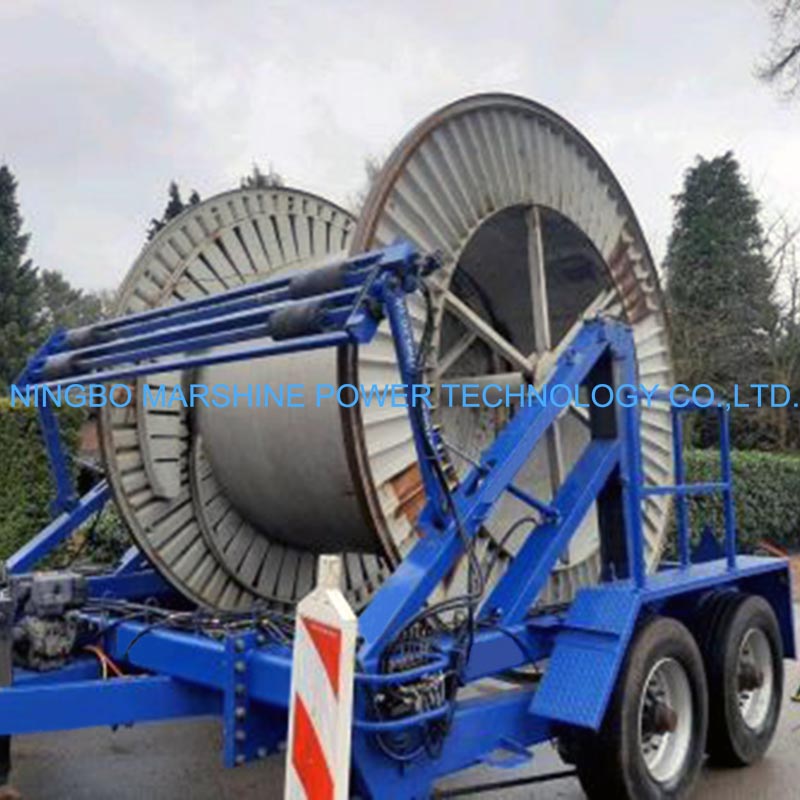

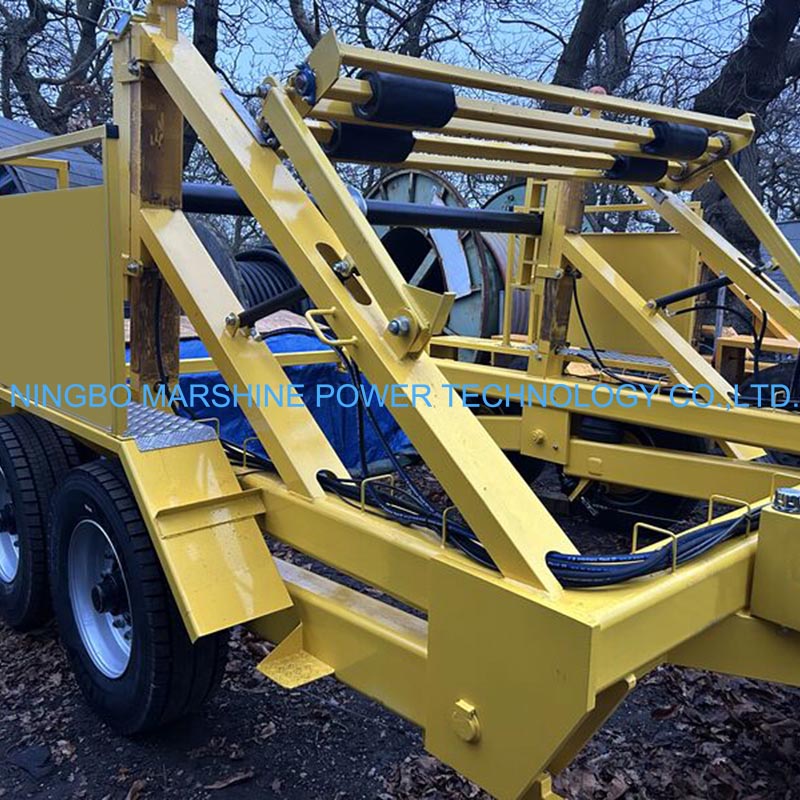

What Is MARSHINE MARCD-700 Cable Drum Trailer?
The MARSHINE MARCD-700 Twin Axle Cable Drum Trailer With Hydraulic Support is designed for heavy-duty cable handling, which is suitable to carry, lift and uncoiling large cable drums in power transmission and infrastructure projects. With powerful hydraulic support and firm twin axle configuration, this trailer can provides the best load carrying, towing stability, and cable deployment for utility, telecom, and underground cable installation work.
How To Use MARSHINE MARCD-700 Cable Drum Trailer?
Preparation Before Use
Before operating the trailer, complete the following inspections and preparations:
Inspect the trailer frame
Check for cracks, deformation, loose bolts, or structural wear.
Examine the hydraulic system
Ensure hydraulic hoses, cylinders, valves, and pumps are functioning properly without leaks.
Inspect the twin axle assembly
Check tires, wheel bearings, suspension, and axle alignment.
Verify braking systems
Confirm trailer brakes and drum braking mechanisms operate correctly.
Check load compatibility
Ensure the cable drum size and weight are within the trailer’s rated capacity.
Prepare the worksite
Use firm and level ground for loading and cable payout operations.
Loading the Cable Drum
Position the Trailer
Park the trailer on stable and level ground.
Engage wheel chocks and parking brakes to prevent movement.
Activate the Hydraulic Support System
Start the hydraulic pump or engage the hydraulic controls.
Raise the support arms to the required loading position.
Align the Cable Drum
Carefully move the cable drum between the support arms.
Ensure the drum is centered and balanced before lifting.
Insert the Drum Shaft
Pass the heavy-duty steel shaft through the center hole of the cable drum.
Secure both ends of the shaft onto the trailer support brackets.
Lift and Secure the Drum
Slowly operate the hydraulic controls to raise the drum.
Ensure smooth and stable lifting during the process.
Lock the drum securely using retaining pins and support locks.
Transporting the Trailer
Connect your MARSHINE MARCD-700 Twin Axle Cable Drum Trailer With Hydraulic Support securely to the towing vehicle using the hitch system.
Attach safety chains and electrical connectors if equipped.
Inspect tire pressure and suspension performance before transport.
Drive carefully, especially on rough terrain or construction roads.
Avoid sudden braking and sharp turns to maintain trailer balance and load stability.
Cable Pay-Out Operation
After arriving at the installation site:
Stabilize the trailer
Park on level ground and engage wheel chocks or stabilizers.
Align with the cable route
Position the trailer so the cable feeds directly toward the pulling direction.
Adjust the drum braking system
Set the brake resistance to control cable payout speed.
Begin cable pulling
Use a cable pulling machine or winch to draw the cable from the drum.
Maintain steady tension
Ensure smooth and controlled cable unwinding throughout the installation process.
Monitor drum rotation
Watch for cable tangling, uneven payout, or excessive drum speed.
