What Is MARSHINE MARCD-360 Cable Drum Trailer?

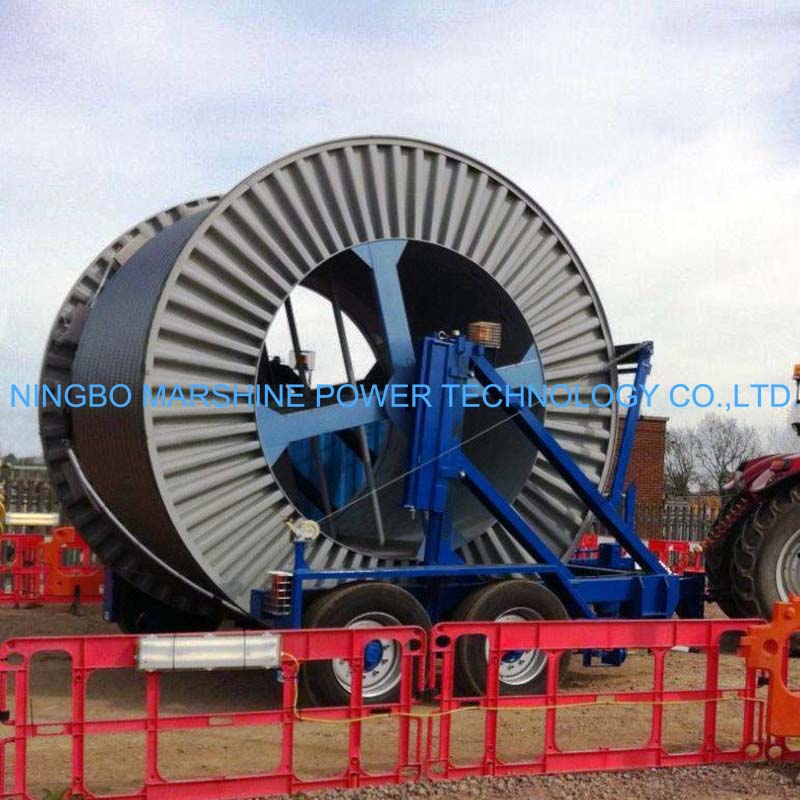

The MARSHINE Twin Axle Hydraulic Lifting MARCD-360 Cable Drum Trailer is a professional cable handling equipment for the transportation, lifting and unwinding of large cable drums on the ground safely and efficiently. The robust twin axle construction and powerful hydraulic lifting system guarantees best load stability and a smooth drum handling, as well as a trustworthy towing performance in heavy power transmission, telecommunication and underground cable installation jobs.
How To Use MARSHINE MARCD-360 Cable Drum Trailer?
Preparation Before Use
Before operating the trailer, complete the following inspections and preparations:
Inspect the trailer frame
Check for cracks, loose fasteners, or structural wear.
Check the hydraulic system
Ensure cylinders, hoses, valves, and pumps operate correctly without leaks.
Inspect the twin axle assembly
Verify tire condition, wheel bearings, suspension, and axle alignment.
Test the braking system
Ensure trailer brakes and drum braking mechanisms function properly.
Verify load capacity
Confirm the cable drum weight and dimensions are within the rated specifications.
Prepare the worksite
Use level and stable ground for loading and cable payout operations.
Loading the Cable Drum
Position the Trailer
Park the trailer on firm and level ground.
Engage wheel chocks and parking brakes to prevent movement.
Activate the Hydraulic Lifting System
Start the hydraulic pump or engage the hydraulic controls.
Raise the support arms of your MARSHINE Twin Axle Hydraulic Lifting MARCD-360 Cable Drum Trailer to the required loading position.
Position the Cable Drum
Carefully move the cable drum between the support arms.
Ensure the drum is centered and balanced before lifting.
Insert the Drum Shaft
Pass the steel shaft through the center hole of the cable drum.
Secure both ends of the shaft onto the support brackets.
Lift and Secure the Drum
Slowly operate the hydraulic controls to lift the drum.
Ensure stable and even lifting throughout the process.
Lock the drum securely using retaining pins and support locks.
Transporting the Trailer
Connect the trailer securely to the towing vehicle using the hitch system.
Attach safety chains and lighting connectors if equipped.
Inspect tire pressure and suspension performance before transport.
Drive carefully, especially on uneven roads or construction terrain.
Avoid sudden braking and sharp turns to maintain trailer stability and load balance.
Cable Pay-Out Operation
After arriving at the installation site:
Stabilize the trailer
Park on level ground and engage wheel chocks or stabilizers.
Align with the cable route
Position the trailer so the cable feeds directly toward the pulling direction.
Adjust the drum braking system
Set appropriate brake resistance to control cable payout speed.
Begin cable pulling
Use a cable pulling machine or winch to draw the cable from the drum.
Maintain steady tension
Ensure smooth and controlled cable unwinding throughout the installation process.
Monitor drum rotation
Watch for uneven payout, cable tangling, or excessive drum speed.
