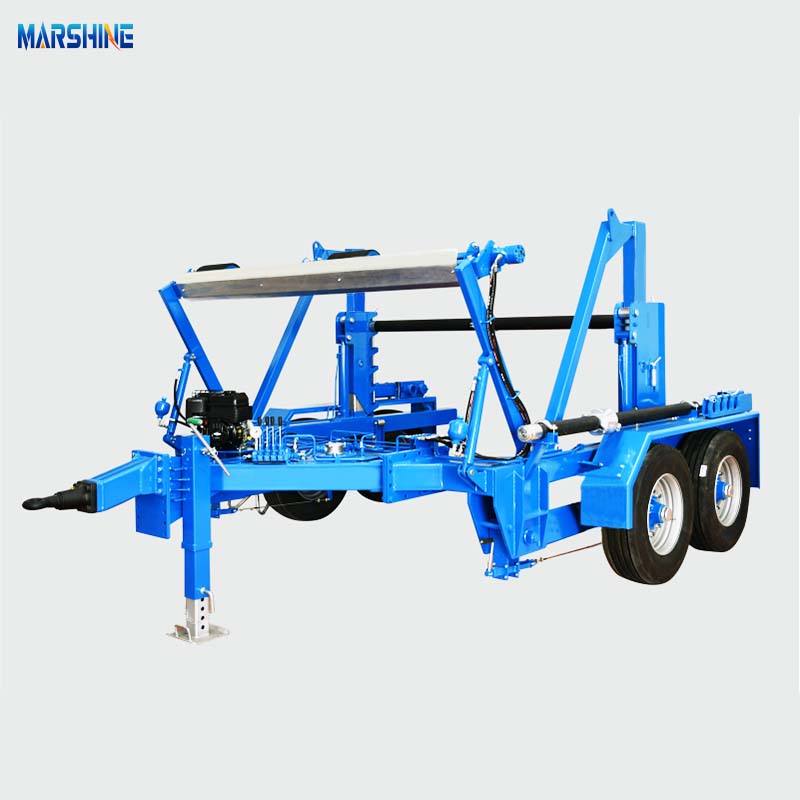

What Is MARSHINE MARCD-310 Cable Drum Trailer?
The MARSHINE Alloy Steel Frame MARCD-310 Hydraulic Support Type Cable Drum Trailer is the best selection for carrying, lifting and paying out the cable drums in the utility & infrastructure applications. This trailer is made with a rugged alloy steel frame with an efficient hydraulic support system for superior strength, operation stability and cable deploying efficiency. It is used prominently in power transmission, telecommunications, underground cable laying, construction and anywhere heavy cable drums need to be handled safely.
So How To Use This MARSHINE MARCD-310 Cable Drum Trailer Properly?
Preparation
Before operating the trailer, complete the following inspections and preparations:
Inspect the alloy steel frame: Check for cracks, loose bolts, or structural damage.
Examine the hydraulic system: Ensure hydraulic hoses, cylinders, valves, and pumps are functioning correctly without leaks.
Inspect tires and axle components: Verify tire pressure, wheel bearings, and axle alignment.
Test the braking system: Ensure the drum brake and trailer brake mechanisms work properly.
Verify load compatibility: Confirm the cable drum weight and size are within rated specifications.
Prepare the worksite: Use stable and level ground for loading and cable payout operations.
Wear PPE: Use helmets, gloves, safety boots, and reflective clothing.
Load the Cable Drum
Position the Trailer
Park the trailer on firm and level ground.
Engage wheel chocks and parking brakes to prevent accidental movement.
Activate the Hydraulic Support System
Start the hydraulic pump or engage the hydraulic controls.
Raise the support arms to the required loading position.
Align the Cable Drum
Carefully move the cable drum between the support arms of your MARSHINE Alloy Steel Frame MARCD-310 Hydraulic Support Type Cable Drum Trailer.
Ensure the drum is centered and balanced before lifting.
Insert the Drum Shaft
Pass the steel shaft through the center hole of the cable drum.
Secure both ends of the shaft onto the trailer support brackets.
Lift and Secure the Drum
Slowly operate the hydraulic controls to raise the drum.
Ensure stable and even lifting during the process.
Lock the drum securely using retaining pins and support locks.
Transportation
Connect the trailer securely to the towing vehicle using the hitch system.
Attach safety chains and electrical connectors if equipped.
Inspect tire condition and suspension stability before transport.
Drive carefully, especially on uneven roads or construction terrain.
Avoid sudden braking and sharp turns to maintain trailer balance and load stability.
Cable Pay-Out Operation
Once the trailer is positioned at the installation site:
Stabilize the trailer
Park on level ground and engage wheel chocks or stabilizers.
Align with the cable route
Position the trailer so the cable feeds directly toward the pulling direction.
Adjust the drum braking system
Set appropriate brake resistance to control cable payout speed.
Begin cable pulling
Use a cable pulling machine or winch to draw the cable from the drum.
Maintain steady tension
Ensure smooth and controlled cable unwinding throughout the installation process.
Monitor drum rotation
Watch for cable tangling, uneven payout, or excessive drum speed.
If you were interested in this MARSHINE Alloy Steel Frame MARCD-310 Hydraulic Support Type Cable Drum Trailer, please feel free to contact us by entering our website and send us inquiry, or just contact us by email (sales@marshine.net) directly.
