What Is MARSHINE MARERS-76 Edge Roller Swivelling?

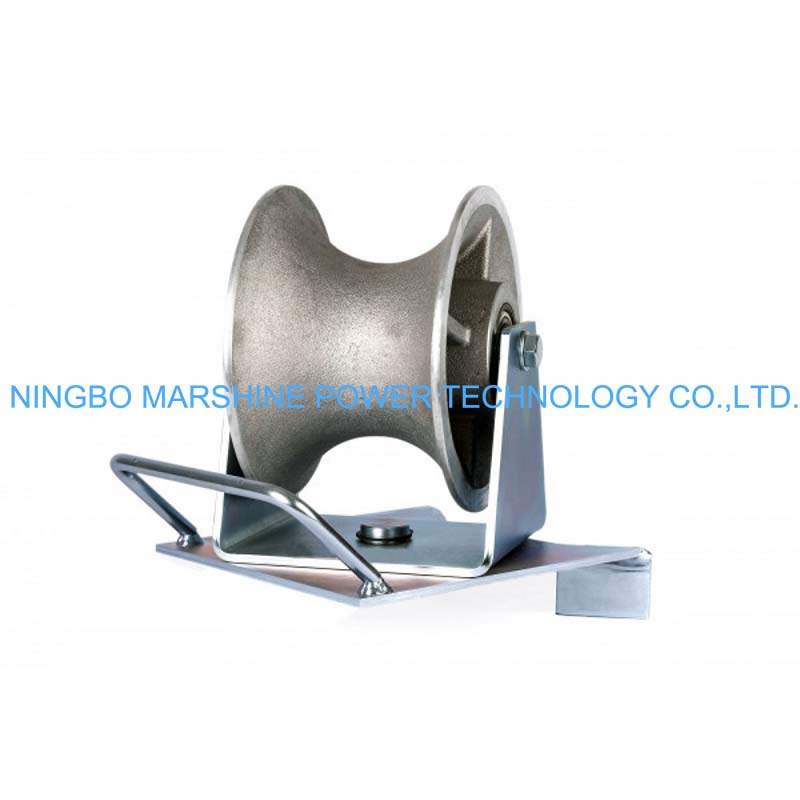

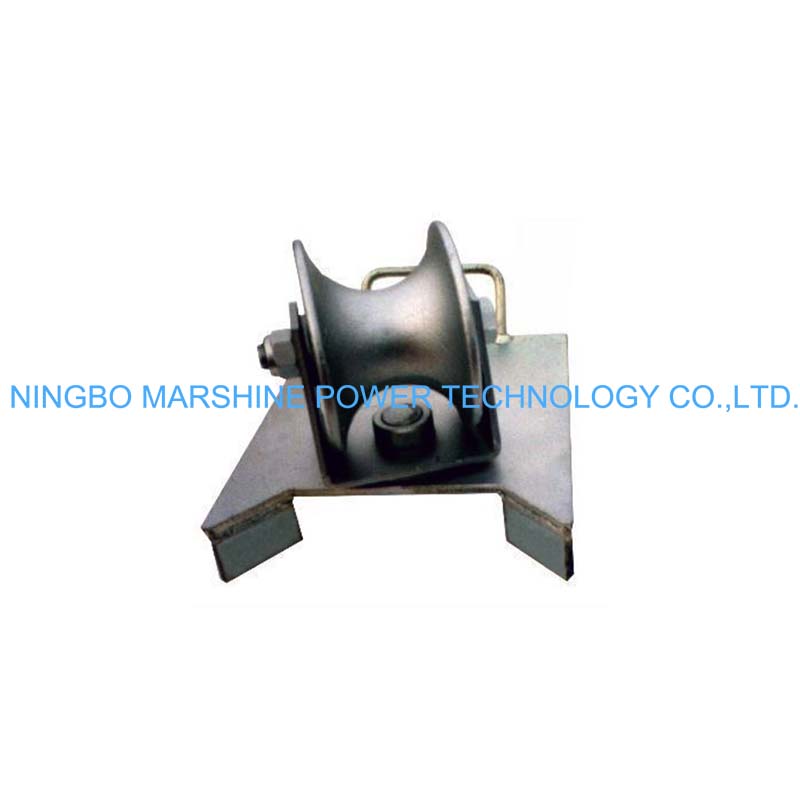

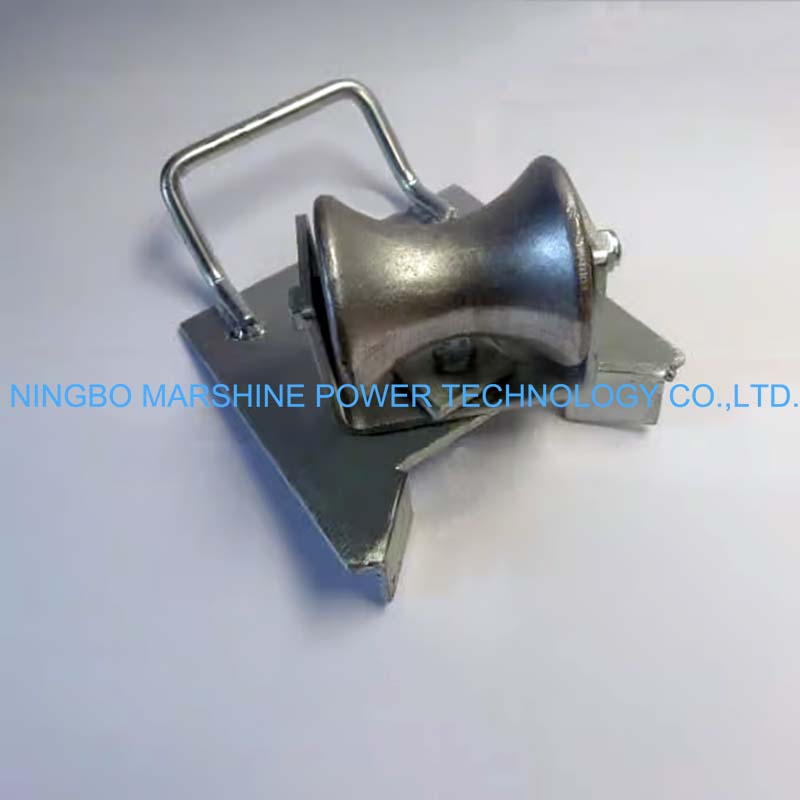

The MARSHINE MARERS-76 Aluminum Edge Roller Swivelling Duct Roller is a specialized cable guiding tool designed to protect cables and ducts during pulling and installation operations. Featuring a lightweight yet durable aluminum frame and a flexible swivelling roller design, this edge roller helps guide cables smoothly around corners, duct openings, and edge transitions while reducing friction and preventing cable damage. It is widely used in underground cable laying, telecommunications, utility construction, and duct installation projects.
How To Use MARERS-76 Edge Roller Swivelling properly?
Preparation
Before operating the swivelling duct roller, complete the following inspections and preparations:
Inspect the aluminum frame
Check for cracks, deformation, or loose fasteners.
Check the roller mechanism
Ensure smooth rotation and free swivelling movement.
Inspect roller surfaces
Confirm there are no sharp edges or excessive wear that may damage cables.
Verify load compatibility
Ensure the cable size and pulling tension are within the roller’s rated capacity.
Prepare the worksite
Clear obstacles and ensure stable placement near duct openings or edges.
Wear PPE
Use gloves, helmets, safety boots, and eye protection.
Installation
Select the Installation Position
Identify the duct entrance, trench edge, or corner where cable protection is needed.
Ensure the installation surface is stable and secure.
Position the Roller
Place the roller directly at the cable transition point.
Align the swivelling roller with the expected cable pulling direction.
Secure the Roller
Attach your MARSHINE MARERS-76 Aluminum Edge Roller Swivelling Duct Roller by clamps, brackets, hooks, or support fixtures.
Ensure the roller remains stable during cable pulling operations.
Check Roller Movement
Verify that the roller rotates smoothly and swivels freely.
Ensure the cable path is properly aligned to minimize side friction.
Operation
Place the Cable on the Roller
Carefully position the cable onto the roller surface.
Ensure the cable sits securely within the guiding area.
Begin Cable Pulling
Start pulling the cable slowly to verify smooth movement.
Observe the roller performance during the initial pulling stage.
Maintain Controlled Pulling Tension
Keep steady pulling tension throughout the operation.
Avoid sudden jerks or excessive pulling force.
Monitor Roller and Cable Alignment
Continuously observe cable movement and roller rotation.
Stop operation immediately if cable slipping, jamming, or instability occurs.
