What Is MARSHINE Adjustable Width Drum Rotator?

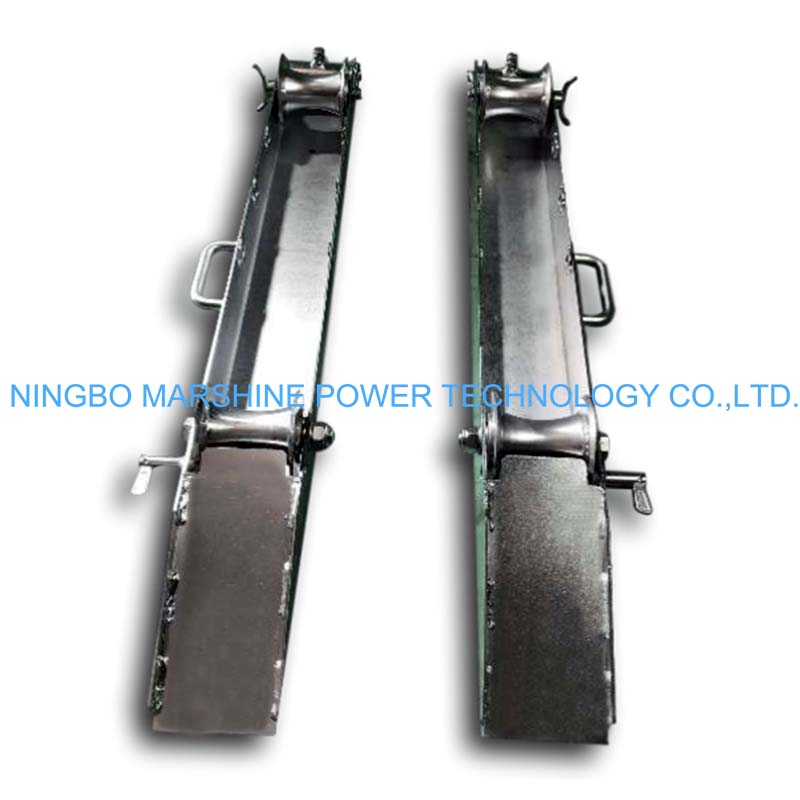

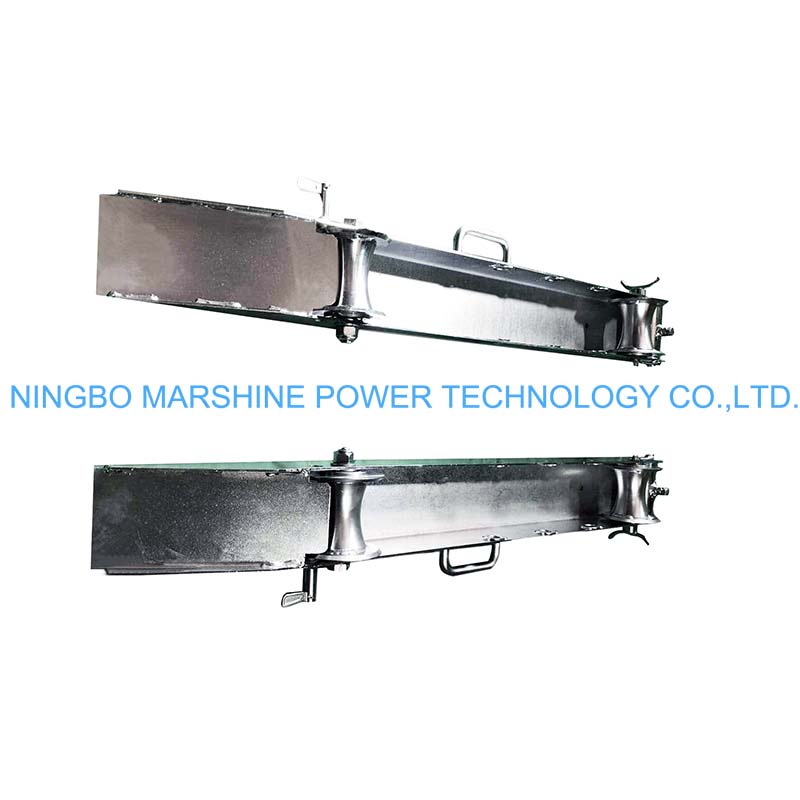

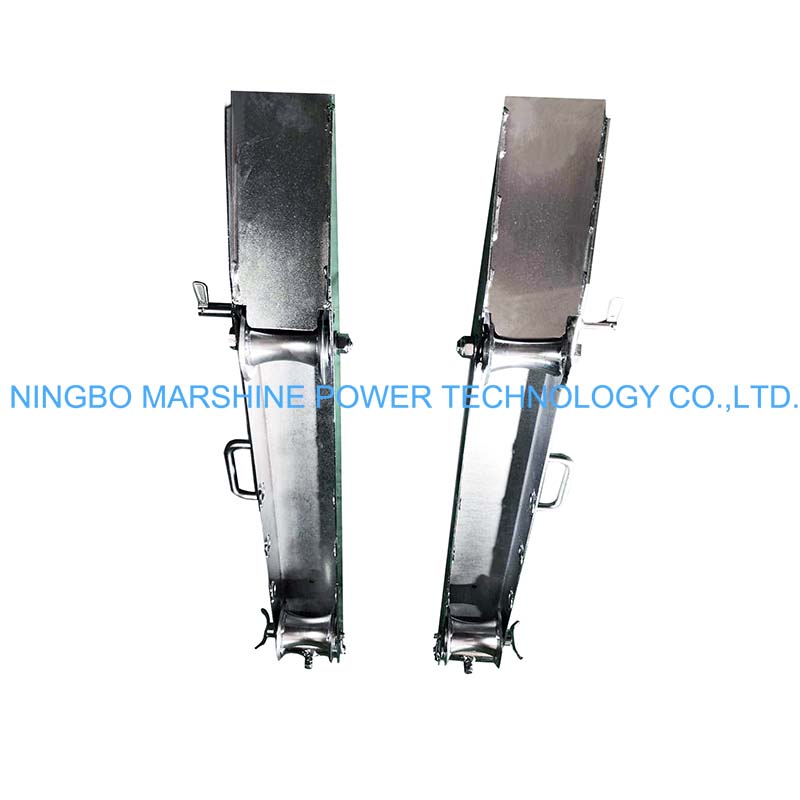

The MARSHINE MARDR3 Adjustable Width Roll On Cable Drum Rotator Platform is designed to simplify cable drum handling while providing exceptional versatility. Unlike fixed-width drum rotators, the MARDR3 features an adjustable platform that can accommodate a wider range of drum widths and diameters, making it an ideal solution for contractors who frequently work with different cable drum sizes. The MARDR3 uses a roll-on drum support system that eliminates the need for spindle bars, lifting jacks, or overhead lifting equipment during normal operation. As cable is pulled, the drum rotates naturally on the support rollers, providing smooth and controlled cable dispensing. By allowing cable drums to roll directly onto the platform and rotate freely during installation, the MARDR3 helps reduce pulling resistance, improve cable control, and increase jobsite productivity.
So How To Use It Correctly?
Inspect the Equipment Before Use
Before operating the MARDR3, perform a complete equipment inspection.
Check:
Frame integrity;
Roller condition;
Bearings for smooth rotation;
Fastener tightness;
Adjustable mechanisms;
Signs of excessive wear or damage;
Replace or repair any damaged components before operation.
Prepare the Work Area
The performance of the rotator depends heavily on proper site preparation.
Ensure that:
Ground conditions are firm and level;
Debris is removed;
Sufficient working space is available;
The cable pulling route is clearly planned;
A stable foundation helps prevent unwanted movement during operation.
Adjust the Platform Width
One of the primary advantages of the MARSHINE MARDR3 Adjustable Width Roll On Cable Drum Rotator Platform is its adjustable width capability.
Before loading the drum:
Measure the cable drum width.
Adjust the roller platform accordingly.
Ensure both sides are adjusted evenly.
Lock the adjustment mechanism securely.
The support rollers should align correctly with the drum flanges to ensure proper load distribution. Proper adjustment improves stability and helps prevent drum slippage during operation.
Load the Cable Drum
Once the platform has been adjusted, the cable drum can be loaded.
For smaller drums:
Roll the drum directly onto the platform.
For larger drums:
Use appropriate lifting equipment such as forklifts or cranes.
Position the drum carefully over the support rollers.
Ensure that:
The drum sits evenly on both roller sets.
The drum is centered on the platform.
The drum contacts all supporting rollers properly.
Verify Drum Stability
Before beginning cable installation:
Rotate the drum manually.
Check for smooth movement.
Verify that the drum remains centered.
Confirm that side guides are functioning properly.
Begin Cable Payout
Start cable installation gradually.
As the cable is pulled:
The drum begins rotating automatically.
Cable unwinds smoothly from the drum.
Roller bearings minimize resistance.
Your MARSHINE MARDR3 Adjustable Width Roll On Cable Drum Rotator Platform will maintains drum stability.
Maintain Proper Cable Alignment
Proper cable alignment is important for smooth operation.
To achieve the best results, you need to:
Pull cable from the centerline of the drum whenever possible.
Use cable rollers along the route.
Avoid sharp directional changes immediately after the drum.
Monitor During Operation
Throughout the installation process, operators should continuously observe:
Drum Rotation: The drum should rotate smoothly without excessive vibration.
Drum Position: The drum should remain centered on the platform.
Cable Tension: Pulling forces should remain steady and controlled.
Roller Performance: Support rollers should rotate freely without abnormal noise.
Complete Cable Dispensing
After the cable has been fully installed, please stop pulling operations and allow the drum to come to a complete stop. Then secure any remaining cable and inspect the drum and platform. This can ensures safe completion of the operation.
Remove the Drum
When cable payout is finished:
Remove any remaining tension from the cable.
Use appropriate lifting equipment if necessary.
Roll or lift the drum off the platform.
Return your MARSHINE MARDR3 Adjustable Width Roll On Cable Drum Rotator Platform to its transport configuration if required.
And always follow proper lifting procedures when handling empty or partially loaded drums.
