Why We Choose Bridge Frame For Straight Line Roller?

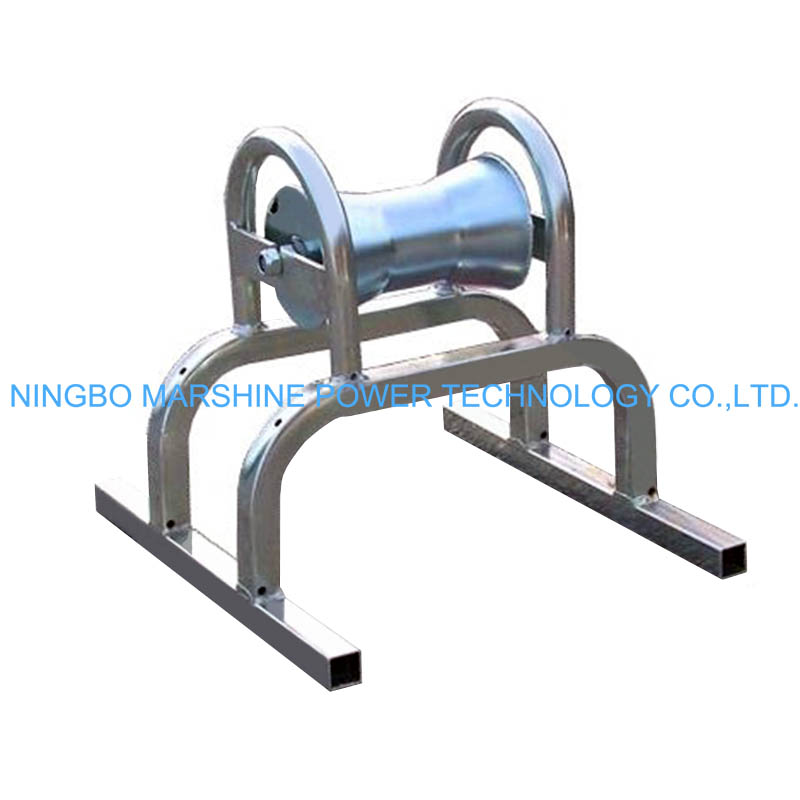

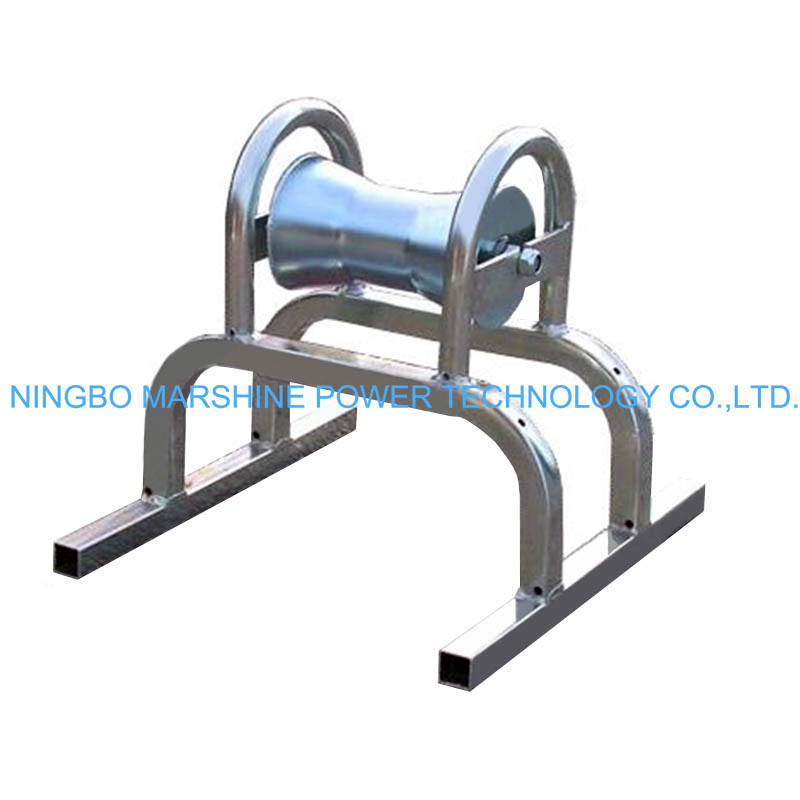

In modern underground cable installation, contractors frequently encounter challenging working environments where new cables must be laid alongside existing utility lines, while the standard straight-line cable rollers perform well on clear cable routes, but they may become unsuitable when multiple cables are already occupying the trench or cable tray. To overcome this challenge, the MARSHINE MARSLR8 Heavy Duty Tubular Frame Bridge Straight Line Roller incorporates a bridge frame design. Unlike conventional ground rollers, its elevated tubular frame allows the roller to sit above previously installed cables while providing a smooth path for the new cable being installed. This specialized structure improves installation efficiency, protects existing infrastructure, and minimizes cable damage during pulling operations.
What’s The Advantage For Bridge Frame?
Protects Previously Installed Cables
One of the primary reasons for using a bridge frame is to protect existing underground cables. During network expansion or cable replacement, contractors often install new cables in trenches that already contain power cables, communication lines, fiber optic cables or control cables, if a standard roller is placed directly on top of these cables, the weight of both the roller and the newly installed cable may create unnecessary pressure.
The MARSHINE MARSLR8 Heavy Duty Tubular Frame Bridge Straight Line Roller solves this problem by allowing the bridge frame to span over existing cables while the new cable runs on the elevated roller. This design helps to prevent cable compression while avoiding damage to cable insulation, and reduces the mechanical stress, so that to protect aging utility infrastructure well.
As a result, existing cable systems remain undisturbed throughout the installation process.
Provides Greater Cable Clearance
Cable installation routes are rarely perfectly flat. The elevated bridge frame provides additional clearance that allows the cable to pass safely over these obstacles. Instead of dragging across uneven surfaces, the cable remains supported by the roller throughout the pulling operation. This reduces friction while improving cable handling.
Minimizes Cable Friction
Every point of contact between the cable and the ground creates resistance. Higher friction results in:
Increased pulling force;
Greater winch load;
Higher cable tension;
More difficult installation;
By elevating the cable above the trench and surrounding obstacles, the bridge frame reduces unnecessary contact with the ground. The large waisted steel roller of this MARSHINE MARSLR8 Heavy Duty Tubular Frame Bridge Straight Line Roller, supported by sealed bearings, allows the cable to rotate smoothly with minimal rolling resistance, improving pulling efficiency during long cable installations.
Prevents Cable Snagging
Large-diameter cables can easily catch on objects within a trench. Without proper support, the cable may snag on existing cables, rocks, concrete edges, trench irregularities or even protective conduits. The bridge frame creates a controlled cable path that keeps the cable elevated and centered. This greatly reduces the likelihood of:
Cable snagging;
Sudden pulling resistance;
Abrasion;
Installation delays;
Smooth cable travel also helps maintain consistent pulling tension.
Improves Cable Protection During Heavy Pulls
High-voltage and armoured cables can be extremely heavy. As pulling tension increases, the cable exerts greater downward force on the roller. The MARSHINE MARSLR8 Heavy Duty Tubular Frame Bridge Straight Line Roller's heavy-duty tubular frame provides excellent structural rigidity, allowing it to support demanding cable loads while maintaining stable alignment. Combined with the large waisted roller, the design keeps the cable centered and reduces the chance of it slipping off the roller during installation.
