What Is MARSHINE MARCR-1 Angle Corner Roller?

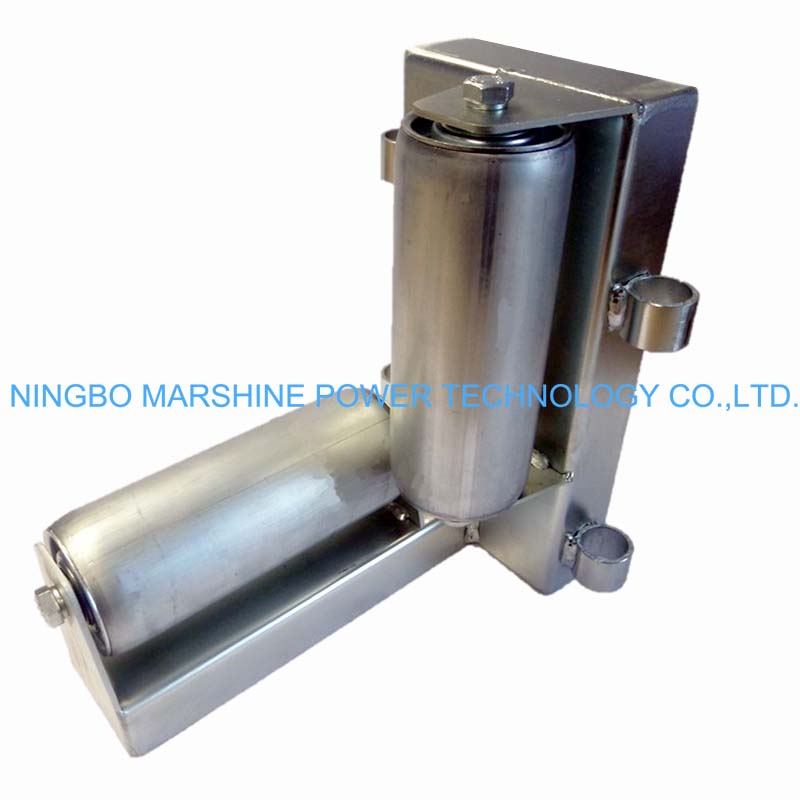

The MARSHINE MARCR-1 Angled Corner Turned Laying Angle Corner Roller is a professional grade underground cable guide tool that aids in ensuring easy cable routing around corners and angle ways when performing cable laying. Built to last and provide efficient protection of the cable, this corner roller reduces cable friction, minimizes insulation damage, and ensures steady cable alignment during a cable run through a bend, corner, or change of direction. It is extensively applied in buried cable laying, power line building, telecommunication and utilities infrastructure works.
So How To Use It Properly?
Preparation
Before using the corner roller, do the following inspections and preparations:
Examine the roller frame
Look for any cracks, buckling, loose bolts, or corrosion.
Test the roller wheels
Make sure they rotate freely and are not dirty or excessively worn.
Check attachment points and brackets
Make sure they are tightly secured.
Check load compatibility
Make sure that the size of the cable and the pulling tension are compatible with the rated capacity of the roller.
Make the site ready
Clear away any obstructions and make sure a safe cable pulling path exists.
Installing the Roller
Determine the Corner Placement
Identify the bend, corner, or change of direction where cable management is needed.
Make sure the surface is firm and appropriate for putting the rollers on.
Position the Roller
Align the roller along the cable pulling route at the corner so that the rollers are positioned on the same line on the cable.
Confirm that wire bending direction corresponds with the angled shape.
Attach the Roller
Fix or stabilize your MARSHINE MARCR-1 Angled Corner Turned Laying Angle Corner Roller with brackets, anchors or support fixtures as needed.
Make sure the roller does not dislodge during the process of pulling the cable.
Check Roller Alignment
Make sure all the rollers are turning freely.
Ensure the cable path is centered to minimize side friction and pulling force variation.
Cable Pulling
Position the Cable
Carefully lay the cable on top of the corner roller system.
Make sure that the cable is well placed in the roller guide.
Start Cable Pulling
Begin the pull slowly to check that the cable is running smoothly in the corner.
Pay attention to the cable and roller during the first stage of the pulling.
Keep Controlled Tension
Hold the tension constantly while you are pulling.
Do not jerk or pull excessively, which may damage the cable or the roller.
Monitor the Roller Functionality
Constantly monitor the cable alignment and the rotation of the rollers.
If cable slippage, jamming or any other instability occurs stop operation immediately.
